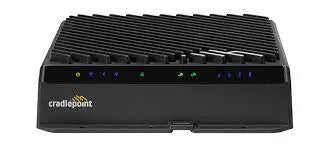

Cradlepoint 3 Year NetCloud Mobile Solution Package with R1900 Series 5G Router (MB03-19005GB-GA)
![Cradlepoint 3 Year NetCloud Mobile Solution Package with R1900 Series 5G Router (MB03-19005GB-GA)]()
![Cradlepoint 3 Year NetCloud Mobile Solution Package with R1900 Series 5G Router (MB03-19005GB-GA)]()
Cradlepoint 3 Year NetCloud Mobile Solution Package with R1900 Series 5G Router (MB03-19005GB-GA)
Available:In Stock
£2,616.72
Cradlepoint 3 Year NetCloud Mobile Solution Package with R1900 Series 5G Router (MB03-19005GB-GA)
The Cradlepoint 5G R1900 Router Package is a ruggedised 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle, while providing access to IT for remote management, troubleshooting, and analytics.
Cradlepoint 5G R1900 Router Package Key Features
Deploy the ultimate 5G NR / Cat 20 LTE mobilenetworking solution with industry-leading features
Add a second cellular modem with the optional RX30 managed accessory for simultaneous dual-carrier connectivity
Take advantage of Wi-Fi 6 for the best possible connections
Enable unified edge security with application aware multi-zone firewalls, IDS/IPS, and internet security
Define policies through centralised cloud-based management for easy deployment at scale
Integrate into Automatic Vehicle Location systems with discrete GNSS and dead reckoning
Create a cellular coverage map for complete visibility into your area’s 5G and LTE coverage
Extend your deployment with additional PoE ports, GPIOs, NetCloud SDK and API, Bluetooth, and container support for customisable solutions
Ideal for High-Performance Mobile Connectivity
For organisations that depend on field forces and mobile networks, the Cradlepoint R1900 mobile router with the NetCloud Mobile Performance Service plan provides a ruggedised GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Mobile Performance Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.
5G Embedded High-Performance Solution
The R1900 mobile router includes an embedded 5G modem that can automatically connect to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 is designed to accept the RX30 managed accessories which provide either four additional GbE PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Cradlepoint 5G Wideband Adapter. These two capabilities, along with the continually improved NetCloud platform, ensure the ability for future expansion and the best investment protection available.
Cradlepoint 5G R1900 Router Package Technical Specifications
Interfaces
Modem: Embedded 5GB NR FR1 low-band, mid-band, and 4G LTE Category 20 modem
- 4 x SMA cellular antenna connectors
Ethernet: 4 x GbE RJ45 (LAN/WAN switchable)
PoE: Optional RX30-PoE Managed Accessory PoE Switch
- 4 x GbE RJ45 Ports with 60W PoE Budget
Wi-Fi: Dual-radio, dual-band, concurrent operation(2.4 GHz & 5 GHz)
- 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS(U.S. & Canada only, global pending)
- 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz)
- 2 x RP-SMA Wi-Fi antenna connectors
- Global Optimized Wi-Fi & International SDR
- WPA2/WPA3 Personal, WPA2/WPA3Enterprise, Open
- 802.11k, 802.11v
Bluetooth: Embedded Bluetooth 5.1 (10 dBm max)
- 1 x RP-SMA connector
Expansion /Console:
- 1 x USB 2.0 Type A (Output: 5V, 500mA,2.5W)
- 1 x DB9 RS-232
- 8-pin (2x4) Molex micro-fit GPIO connector(3 mm locking type)
- RX30 Series Managed Accessories
- RX30-PoE Switch (optional)
- RX30-MC Modem & Switch (optional)
GNSS / GPS: 1 x SMA GNSS antenna connector
Environmental
Temperature:
- Operating: -22 °F to 158 °F (-30 °C to 70 °C)
- Storage: -40 °F to 185 °F (-40 °C to 85 °C)
Humidity:
- Operating: 10% to 90%
- Storage: 5% to 95%
Ingress Protection: IP64 Rated
Power
Power Required: DC input steady state voltage range: 9–36 VDC(requires in-line fuse for vehicle installations)
- For 9–24 VDC installations, use a 3 A fuse
- For > 24 VDC installations, use a 2.5 A fuse
- Connector type: 4-pin 2x2 Molex micro-fit
Reverse polarity & transient voltage protection per ISO 7637-2
Ignition sensing (auto ON & time-delay OFF)
R1900-5GB power consumption (12V input, 25C ambient):
- Idle: 11 W
- Typical: 19 W
- Heavy: 22 W
Physical
Size: 6.77 x 5.82 x 1.61 in (172 x 148 x 41 mm)
Weight: 2.15 lb (0.98 kg)
Certifications
Safety: UL/CUL, CB Scheme, EN60950-1, EN62368,E-Mark
Materials: WEEE, RoHS, REACH, California Prop 65
Shock/Vibration/Humidity:Compliant with MIL STD 810G & SAEJ1455
WiFi Power
FCC:
- 2.4 GHz: 23 dBm Conducted
- 5260–5825 MHz: 21.90 dBm Conducted
EU:
- 2.4 GHz: 14.00 dBm Conducted
- 5500-5700 MHz: 18.00 dBm Conducted
Canada:
- 2.4 GHz: 23.00 dBm Conducted
- 5500-5580 MHz: 22.00 dBm Conducted
- 5660-5825 MHz: 21.89 dBm Conducted
Japan:
- 2.4 GHz: 16.92 dBm Conducted
- 5500-5720 MHz: 21.00 dBm Conducted
Global Safe Mode: 2.4 GHz: 14 dBm Conducted
Other
Technology: 5G NR (low-band, mid-band FR1) and 4G LTE Category 20 LTE-Advanced Pro with Dual Connectivity
- Dual SIM slots, 4FF form factor
Fallback: WCDMA/UMTS/HSPA+
Carrier Aggregation: LTE only; up to 7CA downlink, 2CA uplink ENDC 5G + LTE; downlink and uplink supported - Refer to modem carrier aggregations article
Peak Downlink Rates: Up to 4.14 Gbps — based on 20 Layers LTE + TDD (100 MHz BW, 256 QAM, 4 x 4)
Peak Uplink Rates: Up to 660 Mbps — based on 2 Layers LTE + TDD (100 MHz BW, 256 QAM, SISO)
MIMO: 4x4 MIMO
QAM: Up to 256 — FR1
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
5G NR Bands: n1, n2, n3, n5, n7, n8, n12, n20, n25, n38, n40, n41, n48, n66, n71, n77, n78, n79
WCDMA Bands: B1, B2, B3, B4, B5, B6, B8, B9, B19
Power: LTE only; 23 dBm ± 1 (typical conducted) ENDC 5G + LTE; 20 dBm ± 1 (typical conducted)
Antennas: 4 x SMA female connectors
- External 600 MHz - 6 GHz cellular antennas (not included)
GNSS/GPS: Discrete active GPS with dead reckoning
SMS: Yes
Regulatory: FCC, IC, CE, RCM (pending)
Network Operator Standards: PTCRB, GCF
Network Operator Certifications: AT&T, Verizon
Public Safety Network Certifications: Pending: FirstNet Ready™ and Verizon Response Verified
Private LTE: Yes, includes FCC Part 96 (CBRS Band 48)
