Cat6 SWA Solid U/UTP PE External Black LAN Cable x 50mtr
Cat6 SWA Solid U/UTP PE External Black LAN Cable x50mtr

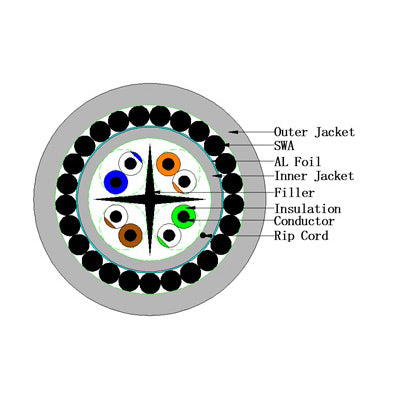

Cat6 SWA Solid U/UTP PE External Black LAN Cable is a Steel Wire Armoured, 4 Pair unshielded LAN Cable designed to support Gigabit Ethernet applications in external environments. The galvanised steel wire armour and polyethylene outer sheath make this cable ideally suited for direct burial and is commonly referred to as duct grade.
This data cable meets or exceeds the relevant Category 6 performance requirements of EIA/TIA568C.2 & ISO/IEC 11801.
The 23 AWG solid copper conductor is a minimum of 0.55mm (+/-0.005mm) and the overall diameter of the sheath is 11.5mm (+/- 0.8mm) due to the steel wire armour contained within the Polyethylene (P.E.) outer sheath.
The Nominal Velocity of Propagation (N.V.P.) is 65% CPR Class Fca (DOP available on request)

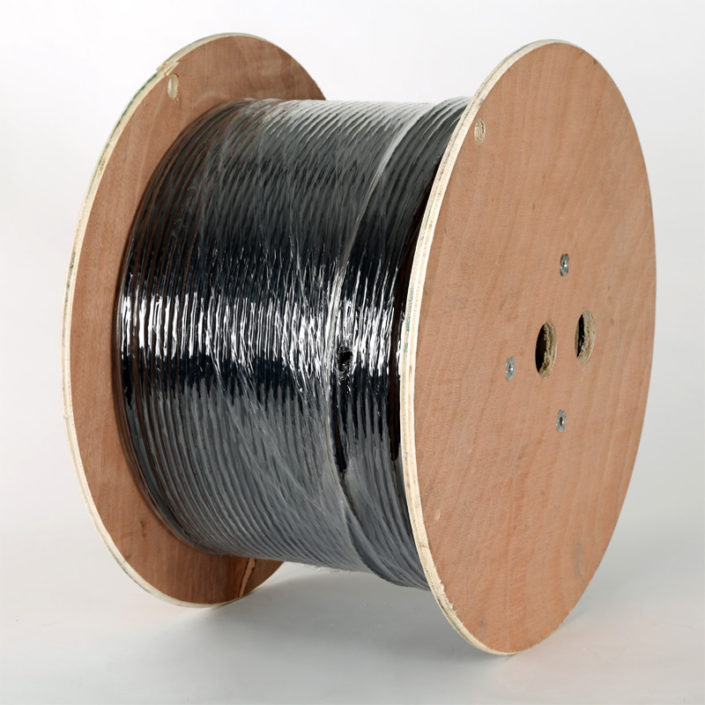

Supplied on 1 x 50 metre reel.
Cat6 SWA Solid U/UTP PE External Black LAN Cable x50mtr
Cat6 SWA Solid U/UTP PE External Black LAN Cable is a Steel Wire Armoured, 4 Pair unshielded LAN Cable designed to support Gigabit Ethernet applications in external environments. The galvanised steel wire armour and polyethylene outer sheath make this cable ideally suited for direct burial and is commonly referred to as duct grade.
This data cable meets or exceeds the relevant Category 6 performance requirements of EIA/TIA568C.2 & ISO/IEC 11801.
The 23 AWG solid copper conductor is a minimum of 0.55mm (+/-0.005mm) and the overall diameter of the sheath is 11.5mm (+/- 0.8mm) due to the steel wire armour contained within the Polyethylene (P.E.) outer sheath.
The Nominal Velocity of Propagation (N.V.P.) is 65% CPR Class Fca (DOP available on request)
Supplied on 1 x 50 metre reel.
