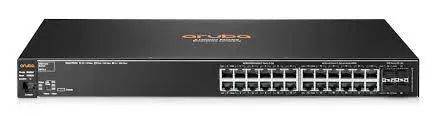

Aruba 2530 24 Port Gigabit Switch (J9776A)
Aruba 2530 24 Port Gigabit Switch (J9776A)
The Aruba 2530 Switch J9776A provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, optional 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet.
Aruba J9776A Key Features
- Cost-effective, reliable and secure Aruba Layer 2 switch series for a better mobile-first experience.
- 10GbE uplinks, ACLs, EEE, traffic prioritization.
- 8-, 24-, and 48-port Gigabit or Fast Ethernet models.
- PoE+ models for voice, video and wireless.
- Supports ClearPass Policy Manager and Airwave Network Management.
The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management
Differentiator
- The Aruba 2530-24G Switch is a fully managed layer 2 switch with 24 10/100/1000 ports and 4 GbE SFP slots
Ports
- (24) RJ-45 autosensing 10/100/1000 ports
- (4) fixed Gigabit Ethernet SFP ports
Memory and processor
- ARM9E @ 800 MHz
- 128 MB flash
- Packet buffer size: 1.5 MB dynamically allocated
- 256 MB DDR3 DIMM
Latency
- 100 Mb Latency: < 7.4 µs
- 1000 Mb Latency: < 2.3 µs
Throughput
- up to 41.6 Mpps
Switching capacity
- 56 Gbps
Stacking capabilities
- Virtual
- 16 switches
Management features
- Aruba AirWave Network Management
- IMC - Intelligent Management Center
- Command-line interface
- Web browser
- Configuration menu
- Out-of-band management (serial RS-232C or micro USB)
- IEEE 802.3 Ethernet MIB
- Repeater MIB
- Ethernet interface MIB
Input voltage
- 100 - 127 / 200 - 240 VAC, rated
Operating temperature range
- 0 to 45°C
Operating humidity range
- 15 to 95% @ 104°F (40°C) (noncondensing)
Power consumption
- 48 W (maximum)
Heat dissipation
- 164 BTU/hr (173.02 kJ/hr)
Minimum dimensions (W x D x H)
- 44.3 x 25.4 x 4.45 cm
Weight
- 2.77 kg
Aruba 2530 24 Port Gigabit Switch (J9776A)
The Aruba 2530 Switch J9776A provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, optional 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet.
Aruba J9776A Key Features
- Cost-effective, reliable and secure Aruba Layer 2 switch series for a better mobile-first experience.
- 10GbE uplinks, ACLs, EEE, traffic prioritization.
- 8-, 24-, and 48-port Gigabit or Fast Ethernet models.
- PoE+ models for voice, video and wireless.
- Supports ClearPass Policy Manager and Airwave Network Management.
The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management
Aruba J9776A - Technical SpecificationsDifferentiator
- The Aruba 2530-24G Switch is a fully managed layer 2 switch with 24 10/100/1000 ports and 4 GbE SFP slots
Ports
- (24) RJ-45 autosensing 10/100/1000 ports
- (4) fixed Gigabit Ethernet SFP ports
Memory and processor
- ARM9E @ 800 MHz
- 128 MB flash
- Packet buffer size: 1.5 MB dynamically allocated
- 256 MB DDR3 DIMM
Latency
- 100 Mb Latency: < 7.4 µs
- 1000 Mb Latency: < 2.3 µs
Throughput
- up to 41.6 Mpps
Switching capacity
- 56 Gbps
Stacking capabilities
- Virtual
- 16 switches
Management features
- Aruba AirWave Network Management
- IMC - Intelligent Management Center
- Command-line interface
- Web browser
- Configuration menu
- Out-of-band management (serial RS-232C or micro USB)
- IEEE 802.3 Ethernet MIB
- Repeater MIB
- Ethernet interface MIB
Input voltage
- 100 - 127 / 200 - 240 VAC, rated
Operating temperature range
- 0 to 45°C
Operating humidity range
- 15 to 95% @ 104°F (40°C) (noncondensing)
Power consumption
- 48 W (maximum)
Heat dissipation
- 164 BTU/hr (173.02 kJ/hr)
Minimum dimensions (W x D x H)
- 44.3 x 25.4 x 4.45 cm
Weight
- 2.77 kg
