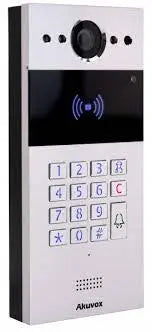

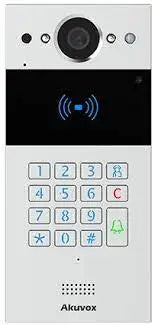

Akuvox R20KS Compact IP Door Intercom Unit with Key Pad
Akuvox R20KS Compact IP Door Intercom Unit with Key Pad
The R20KS is a highly-compact, IP-connected Door Intercom. It features a numeric keypad, high resolution colour camera, RFID card reader and NFC contactless via smart phone and secure remote audio/video communication and door entry.
R20KS Key Features:
- IP connected Door Intercom
- Integrated RFID Card Reader
- NFC contactless via Smartphone
- IP65 protection rating
- Numeric keypad
- Wide-angle camera: 110°
- High resolution video: 1080p
- Complies with SIP standard for easy integration in every SIP capable PBXs
- Complies with ONVIF standard for easy integration with any network surveillance system
- Wide Dynamic Range for improved low light performance
Using the latest IP connectivity technology, Akuvox R20KS intercom enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.
R20KS Technical Specifications
General
- Water-proof & Dust-proof protection rating IP65
- Camera 2M pixels, with automatic lighting
- RFID Card Reader 13.56MHz & 125kHz
- Video Codec H.265 & H.264
- Low image light performance Digital Wide Dynamic Range
- Body Material Aluminium Alloy
- Buttons 15 Key Numeric Keypad
- Relays 2
- Inputs 2
- Power Requirements PoE or 12v DC
- PoE (IEEE802.3af, Power-over-Ethernet)
- Installation Surface mounted (Back box included)
- Dimensions 185(H) x 85(W) x 24(D) mm
- Dimensions (incl bracket) 185(H) x 85(W) x 31(D) mm
- Weight (Net) 1.20kg
- Weight (Gross) 1.80kg
