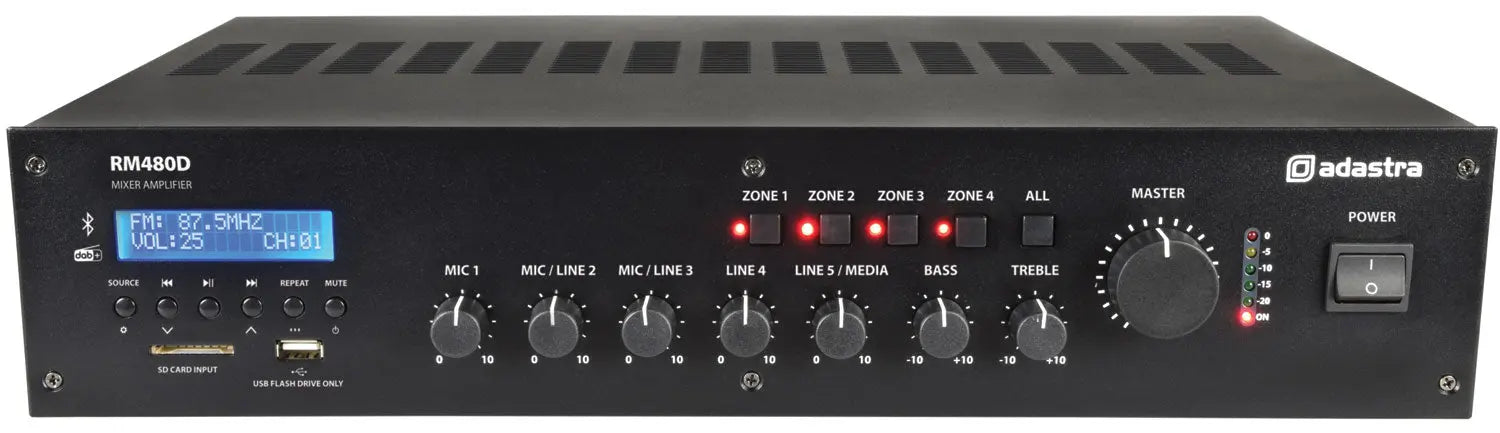

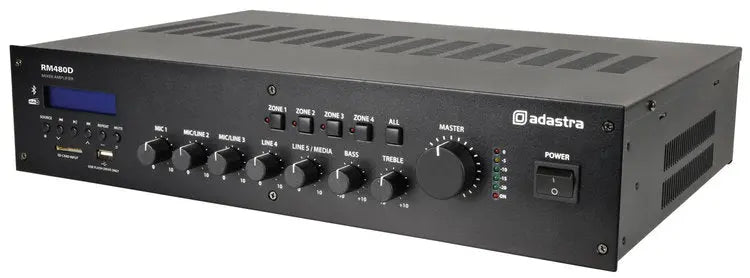

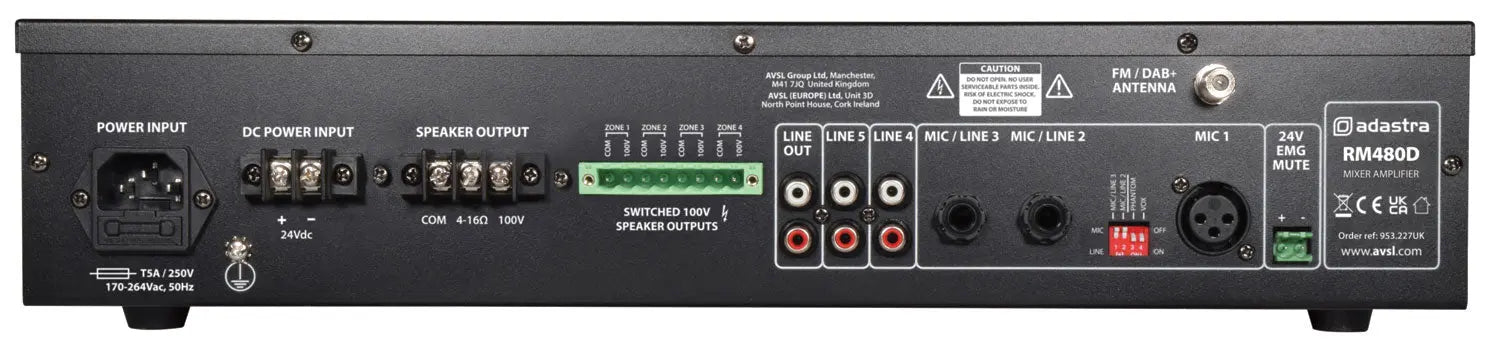

RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD
RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD
5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminla are via 4 switchable zones with a separate "always on" output for priority alert speakers.
- DAB+/FM radio tuner
- Bluetooth receiver with unique serial ID
- USB/SD audio player
- 4 switchable 100V outputs and 1 unswitched output
- Optional 4-16 Ohm output
- XLR input with switchable +20V phantom power
- 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
- Switchable VOX voiceover feature
- 2U 19" rack mountable (rack ears supplied)
- 24V emergency mute contacts
- Mains 230Vac or 24Vdc power option
- Weight9.66kg
- Dimensions433 x 410 x 88mm
- FuseT6.3A
- Output power : rms480W
- Power supply170-264Vac, 50Hz (IEC)
- DC power24Vdc (screw terminals)
- InputsMic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity : mic 1 (balanced)-53dBV
- Input impedance : mic 15k Ohms
- Input sensitivity : line (unbalanced)-15dBV (-18.5dBV line 5)
- Input impedance : inputs 2-51k Ohms
- Line outputRCA
- Speaker outputs4 switched + 1 non-switched 100V / 4-16 Ohms / COM
- Bluetooth version5.0
- ControlsMic1, mic/line2+3, line4+5, bass, treble, master volume
- Equaliser : bass100Hz ±10dB
- Equaliser : treble10kHz ±10dB
- Rear panel switchesPhantom, Vox, Mic/Line (2 + 3)
- Phantom power+20V (mic 1 XLR, switchable)
- Audio sourceDAB+/FM tuner, USB/SD player, Bluetooth receiver
- Emergency control24V contacts - mute all except Mic.1 when triggered
- THD<1.0%
Trade Information
- SKU953.227UK
- Barcode EAN5015972233399
- Tariff code8518500090
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims125 x 460 x 525mm
- Package quantity1 unit
- Nett weight13.8452kg
- Gross weight15.2772kg
- Carton dims163 x 448 x 555mm
- Carton quantity1 unit
- Carton weight16.19kg
