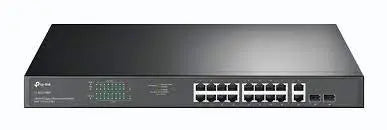

TP-Link 18-Port Gigabit Rackmount PoE Switch with 16 PoE+ (TL-SG1218MP)
![TP-Link 18-Port Gigabit Rackmount PoE Switch with 16 PoE+ (TL-SG1218MP)]()
![TP-Link 18-Port Gigabit Rackmount PoE Switch with 16 PoE+ (TL-SG1218MP)]()
TL-SG1218MP Key Features:
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
TP-Link JetStream TL-SG1218MP- Technical Specifications
TP-Link 18-Port Gigabit Rackmount PoE Switch with 16 PoE+ (TL-SG1218MP)
Available:In Stock
£186.24
TP-Link 18-Port Gigabit Rackmount PoE Switch with 16 PoE+ (TL-SG1218MP)
The TP-Link TL-SG1218MP is an 18-Port Gigabit Rackmount PoE Switch with 16 PoE+. Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
TL-SG1218MP Key Features:
TL-SG1218MP Key Features:
- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Works with IEEE 802.3af/at compliant PDs
- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
TP-Link JetStream TL-SG1218MP- Technical Specifications
Hardware Features
- Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
- Interface • 16× PoE+ gigabit RJ45 ports• 2× gigabit non-PoE RJ45 ports• 2× combo gigabit SFP slots
- Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-X MMF, SMF
- Fan Quantity 2
- Physical Security Lock Yes
- Power Supply 100–240 VAC, 50/60 Hz
- PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–16• PoE Power Budget: 250 W
- Dimensions ( W x D x H ) 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)
- Mounting Rack Mountable
- Max Power Consumption • 21.4 W (220/50 Hz. no PD connected)• 286.64 W (220/50 Hz. with 250 W PD connected)
- Max Heat Dissipation • 72.97 BTU/h (no PD connected)• 977.44 BTU/h (with 250 W PD connected)
Performance
- Switching Capacity 36 Gbps
- Packet Forwarding Rate 26.78 Mbps
- MAC Address Table 8K
- Packet Buffer Memory 4.1 Mbit
- Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs• 802.1p/DHCP QoS• Mac Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
- Jumbo Frame 10 KB
Other
- Certification CE, FCC, RoHS
- Package Contents • TL-SG1218MP• Installation Guide• Power Cord• Rackmount Kit• Rubber Feet
- Environment • Operating Temperature: 0–50 °C (32–122 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
TP-Link 18-Port Gigabit Rackmount PoE Switch with 16 PoE+ (TL-SG1218MP)
The TP-Link TL-SG1218MP is an 18-Port Gigabit Rackmount PoE Switch with 16 PoE+. Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.TL-SG1218MP Key Features:
- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Works with IEEE 802.3af/at compliant PDs
- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
TP-Link JetStream TL-SG1218MP- Technical Specifications
Hardware Features
- Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
- Interface • 16× PoE+ gigabit RJ45 ports• 2× gigabit non-PoE RJ45 ports• 2× combo gigabit SFP slots
- Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-X MMF, SMF
- Fan Quantity 2
- Physical Security Lock Yes
- Power Supply 100–240 VAC, 50/60 Hz
- PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–16• PoE Power Budget: 250 W
- Dimensions ( W x D x H ) 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)
- Mounting Rack Mountable
- Max Power Consumption • 21.4 W (220/50 Hz. no PD connected)• 286.64 W (220/50 Hz. with 250 W PD connected)
- Max Heat Dissipation • 72.97 BTU/h (no PD connected)• 977.44 BTU/h (with 250 W PD connected)
Performance
- Switching Capacity 36 Gbps
- Packet Forwarding Rate 26.78 Mbps
- MAC Address Table 8K
- Packet Buffer Memory 4.1 Mbit
- Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs• 802.1p/DHCP QoS• Mac Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
- Jumbo Frame 10 KB
Other
- Certification CE, FCC, RoHS
- Package Contents • TL-SG1218MP• Installation Guide• Power Cord• Rackmount Kit• Rubber Feet
- Environment • Operating Temperature: 0–50 °C (32–122 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
