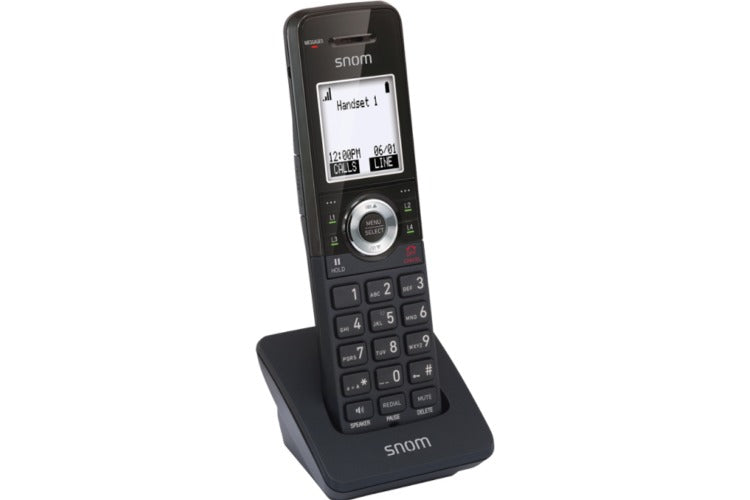

Snom M10 SC Dect Handset
Snom M10 SC Dect Handset
The Snom M10 SC handset combines elementary call functions, e.g. holding or transferring calls, with crystal clear audio quality. The modern DECT handset convinces with a large display and a backlit keypad. Up to 9 hours of talk time or one week of stand-by time can be achieved thanks to the powerful battery.
Snom M10 SC Dect Handset Key Features:
- Backlit keypad
- Long standby time
- OTA updates
- Belt clip
The Snom M10 SC Dect handset's 4 LED function keys are freely programmable, among other things, calls can be shared on several Snom M10 SC thanks to Snom's own "Shared Call Emulation" feature VoIP provider-independent.
Snom M10 SC Technical Specifications
Basics
- Colour black
- Wall mountable
- Product numbers
- M10 SC | DECT handset | EU & UK | 00004452
Dimensions and weight
- Dimensions (H x W x D, approx.)
- Handset: 173 mm x 49 mm x 27 mm
- Charger: 54 mm x 76 mm x 82 mm
- Handset with charger: 186 mm x 76 mm x 82 mm
- Packaging: 182 mm x 131 mm x 61 mm
- Weight (approx.)
- Handset: 195 g
- Packaging: 299 g
Display and indicators
- Display
- monocolour, backlit (blue / white), graphical
- 1.8" display size (diagonal)
- Resolution 90 x 65 pixel
- 5 LED indicators
- 1 red LED for message waiting indication (MWI), 4
- green LED for function key indication
Keys and user interface
- 29 hard keys in total
- Standard ITU telephone keypad: 12 keys with star and
- Standard ITU telephone keypad: 12 keys with star and
pound/hash key, backlit - 2-way (DIR / CID) navigation key
- 2 context-sensitive function keys
- Programmable line / function keys
- 4 keys with green LED
- 4 dedicated audio keys
- Mute, Speakerphone, Volume +, Volume -
- 5 dedicated function keys
- Cancel, Menu / Select, Hold, Redial, Intercom
- Related features
Interfaces and connections
- M10 power options
- Power adapter: Charger 100 - 240 V AC / 50 - 60 Hz |
6 V DC / 100 mA - Removable, rechargable 2.4 V / 550 mAh (Ni-MH)
battery, up to 7 days standby time, up to 9 hours talk
time
Wired interfaces
- 1 coaxial power adapter connector
- 2.5 mm standard phone jack for wired headset
connection
Wireless interfaces
- DECT
