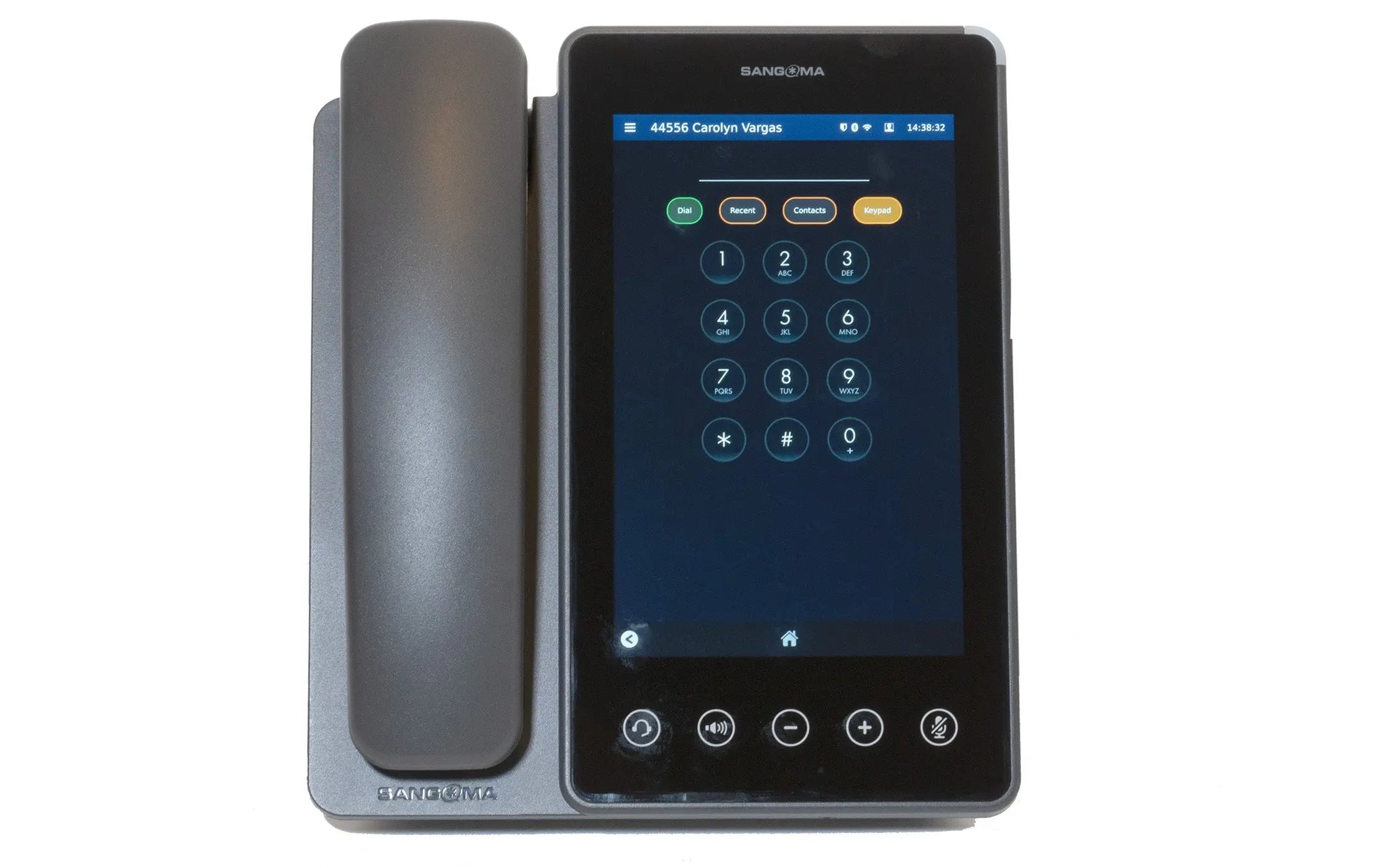

Sangoma P370 Executive-Level IP Phone
Sangoma P370 Executive-Level IP Phone
The Sangoma P370 delivers a sleek desktop presence for the executive user with a large 7.0” 1280×800 color IPS touchscreen display. It includes high definition audio, unprecedented plug-and-play deployment, and advanced built-in applications that include voicemail, call log, contacts, phone status, user presence, parking, and more.
Sangoma P330 Key Features
- Large 7.0" 1280x800 colour IPS touchscreen display
- 16 lines (soft-keys)
- Bluetooth and Wi-Fi Support
- Built-in business applications
- Support for our PM200 attendant consolec
Highly Integrated Productivity Applications with P-Series Phones
Visual Voicemail: See who left you voicemails, along with timestamps and full control to skip and delete.
Queues: Get a full overview of call queue activity; perfect for managers who need to see at-a-glance information about the queues on the system.
Parking: See all parked calls on the system in a visual display and pick up the one you want!
Call Log: In addition to standard call logs, the Call Log app allows you to see the last 50 calls made on the system, persistent across reboots!
Status (Presence): See and change your status and control how calls are handled based on the status. Status options, such as "Away" or "Away - At Lunch" are controlled by the Presence State Module in your phone system GUI.
Contacts: Search for contacts/users or groups, created by the Contact Manager module, to call users easily.
Recording: On-demand recording allows the user to start and stop recording at any time by using a phone button.
Hot Desking (Login/Logout): Log in or out of any phone and have all your extension and user settings follow you.
Conference: See all your conference rooms and view the callers in each. You have full control to admit or deny access, mute callers, or remove callers from a conference room.
User Interface
- 7.0 inch, 800 x 1280 pixel backlit colour IPS LCD display
- Multi-point capacitive touch
- 16 line appearances (software)
- Feature and context-sensitive functions
- Dedicated touch control with backlight for Headset, Speaker, Mute, and without backlight for Volume functions
- 3-color LED message waiting indicator (MWI)
Connections
- 4P4C (RJ-9) handset/headset jack
- 2 switched 10/100/1000 Mbps Ethernet ports
- 2 USB-A 2.0 ports
- 12 volt 1.6A DC power port
- 2 Lock Ports
- Electronic Hookswitch signaling port
Phone Features
- Auto-answer
- Headset-answer
- Headset-ring
- Distinctive ring
- Custom ringtones
- Call waiting
- Call transfer (blind & attended)
- Call forward
- Call hold
- Call parking
- Call pickup
- Intercom/Paging
- Message Waiting Indication
- Busy Lamp Field (BLF)
- 3-way conferencing
- Do Not Disturb (DND)
- Redial
- Call timer
- Caller ID display
- Hot Desking Supported on Switchvox 7.8 and above
Phone Applications
- Visual Voicemail
- Contacts
- Presence/Status
- Call Log
- Parked Calls
- Info
- Forward Calls
Dimensions/Weight
- 11" x 9.0" x 3.5", 2.7 lbs.
Audio Features
- Handset, handsfree, and headset modes
- Full-duplex HD speakerphone with echo cancellation
- Hearing aid compatible
- Multicast audio playback
- Wideband: G.722
- Narrowband: G.711 ulaw/alaw, G.726, G.729a
Network Support
- Static or DHCP IP address assignment
- NTP time synchronization
- Priority queuing
- VLAN, LLDP, NAT traversal, QoS
- 802.1X pass-through
- 802.1X authentication
SIP/VoIP Support
- SIP v2
- TLS/SRTP
- DTMF, RFC4733
- SIP peer-to-peer
- SIP presence (SUBSCRIBE/NOTIFY)
- Per-account digit map/dial plan
- Dial using SIP URI
- Dial using SIP server
- Secure SIP authentication
Management
- Firmware update via browser
- Factory restore via UI
- Remote logging via syslog
Software Minimum Requirements
- Switchvox >=7.9
- FreePBX & PBXact >=15 with Endpoint Manager (latest)
