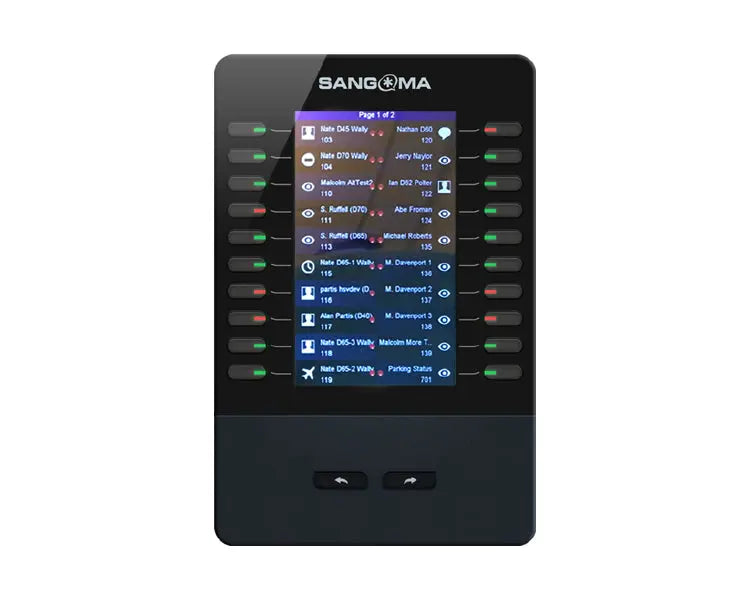

Sangoma EXP150 Expansion Module
Sangoma EXP150 Expansion Module
The Sangoma EXP150 delivers single-button access to contacts/extensions and maximizes productivity of the telephone attendant by efficiently dispatching inbound calls. The EXP150 is compatible with the Sangoma D65 series and features a large 160x320 graphic LCD display with 2 pages of 20 programmable hard keys delivering up to 40 programmable features. Dual-colour LED and 2 control keys for fast page switching make the EXP150 simplify communications.
Sangoma EXP150 Key Features
- Large 160x320 Graphic LCD Display
- 20 Programmable Hard Keys for Up to 40 Programmable Features
- 2x Control Keys for Quickly Switching Pages
- Daisy-chain Up to 6 Modules for Up to 240 Programmable Keys
- Compatible with Sangoma D65 IP Phones
- 2x RJ45 Ports (1x Uplink & 1x Downlink)
Expandability
Extend your investment by daisy-chaining up to 6 expansion modules for up to 240 programmable keys.
Support and Professional Services
Sangoma offers a full complement of professional services including, technical support, software maintenance, training, deployment and consulting services.
PSTN Protocols
- 160x320 graphic LCD with 16-level grayscales
- LCD backlight
- Two page views are possible
- Icons for user presence state
- Local GUI controlled by host Sangoma D65 phone
Feature Keys
- 20x physical keys each with a dual-color LED
- 2x independent control keys
- Daisy-chain up to 6 modules for up to 240 programmable keys
Certification
- EMC: FCC Part 15 Class B, EN 55022, EN 55024, EN 61000
- Safety: EN 60950
Connectivity
- 2x RJ45 ports (1x uplink and 1x downlink)
Environmental
- Operating humidity: 10~95%
- Operating temperature: -10~50°C
Dimensions
- Box Size: 140mm (W) x 251mm (D) x 91mm (H)
- Shipping Weight: 1.18kgs (2.6lbs)
Power
- External Type A AC adapter *Included: AC 100~240V input, DC 5V/1.2A output
