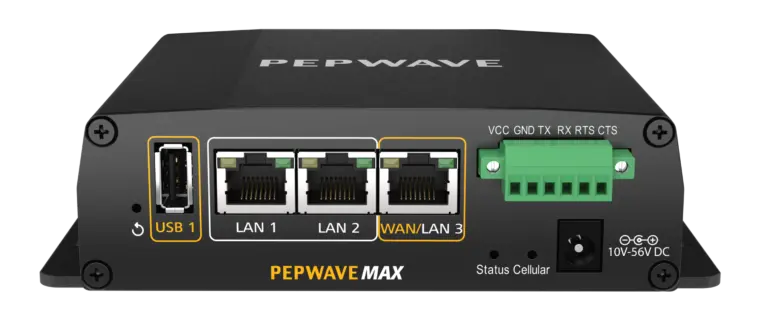

Peplink Pepwave MAX HD2 Mini Mission Critical 4G LTE Bandwidth Bonding Router (MAX-HD2-MINI-LTEA-W-T)
Peplink Pepwave MAX HD2 Mini Mission Critical 4G LTE Bandwidth Bonding Router (MAX-HD2-MINI-LTEA-W-T)
The Pepwave MAX-HD2-MINI-LTEA-W-T packs big features, such as dual embedded cellular, SpeedFusion bandwidth bonding, and PoE, into a tough, compact enclosure that stands up to life on the go.
Pepwave MAX-HD2-MINI-LTEA-W-T Key Features
- Dual Cellular and Redundant SIM Slots
- Fleet Tracking and Management
- Meet Strict Security Compliance
- SpeedFusion Bandwidth Bonding and Seamless Failover
- Customise Captive Portal
- Certified Toughness
Dual Cellular and Redundant SIM Slots
Dual Cellular and Redundant SIM slots allow you to use the same or different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.
Fleet Tracking and Management
With built-in GPS fleet tracking and InControl cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.
SpeedFusion Bandwidth Bonding and Seamless Failover
SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.
Customise Captive Portal
Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.
WAN Interface
- 1x USB Interface
- 1x GE
- 2x Embedded LTE Modems with Redundant SIM Slots
LAN Interface
- 2x GE
Router Throughput
- 300Mbps
Recommended Users
- 150
LTE Modem
- Downlink/Uplink Datarate: 100Mbps/50Mbps
LTE-A Modem
- Downlink/Uplink Datarate: 300Mbps/50Mbps
Cellular and GPS Antenna Connector
- 4x SMA Antenna Connectors
- 1x SMA GPS Antenna Connector
Power Input
- DC Jack/Terminal Block: 10V – 56V, 2A
Power Output
- Up To Three 802.3af/24V Pepwave Passive PoE Outputs#
Power Consumption
- 15W (max.)
Dimensions
- 1.6 x 5.8 x 5 inches
- 40 x 147 x 128 mm
Weight
- 0.96 pounds
- 0.5 kg
Operating Temperature
- -40° – 149°F
- -40° – 65°C
Humidity
- 15% – 95% (non-condensing)
Certifications
- FCC
- CE
- RoHS
- E-Mark
- IC
- EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance: EN 50155: Railway Applications EN 61000: Electromagnetic Compatibility
Warranty
- 1-Year Limited Warranty
