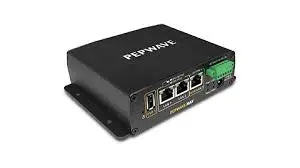

Peplink Pepwave MAX HD2 Mini Mission Critical 4G LTE Bandwidth Bonding Router (MAX-HD2-MINI-LTE-E-T )
Peplink Pepwave MAX HD2 Mini Mission Critical 4G LTE Bandwidth Bonding Router (MAX-HD2-MINI-LTE-E-T )
The Peplink MAX-HD2-MINI-LTE-E-T is a Compact Dual 4G LTE Mobile Router. The HD2 Mini packs big features, such as dual embedded cellular, SpeedFusion bandwidth bonding, and PoE, into a tough, compact enclosure that stands up to life on the go.
Peplink MAX-HD2-MINI-LTE-E-T Key Features
- Dual Cellular and Redundant SIM Slots
- Fleet Tracking and Management
- SpeedFusion Bandwidth Bonding and Seamless Failover
- Customise Captive Portal
- Certified Toughness
With built-in GPS fleet tracking and InControl cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.
General
- WAN Interface: 1x USB Interface, 1x GE, 2x Embedded LTE Modems with Redundant SIM Slots
- LAN Interface: 2x GE
- Router throughput: 300Mbps
- Recommended Users: 150
- LTE Modem: Downlink/Uplink Datarate: 100Mbps/50Mbps
- LTE-A Modem: Downlink/Uplink Datarate: 300Mbps/50Mbps
- Cellular and GPS Antenna Connector: 4x SMA Antenna Connectors 1x SMA GPS Antenna Connector
- Power Input: DC Jack/Terminal Block: 13V – 48V 2A
- Power Output: Up To Three 802.3af/24V Pepwave Passive PoE Outputs#
- Power Consumption: 15W (max.)
- Dimensions: 1.6 x 5.8 x 5 inches, 40 x 147 x 128 mm
- Weight: 0.96 pound, 0.5kg
- Operating Temperature:-40° – 149°F, -40° – 65°C
- Humidity: 15% – 95% (non-condensing)
- Certifications:
- FCC, CE, RoHS, E-Mark
Class I, Division II: Hazardous Locations
RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV)
EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance EN 50155: Railway Applications
EN 61000: Electromagnetic Compatibility - Warranty: 1-Year Limited Warranty
Peplink Pepwave MAX HD2 Mini Mission Critical 4G LTE Bandwidth Bonding Router (MAX-HD2-MINI-LTE-E-T )
The Peplink MAX-HD2-MINI-LTE-E-T is a Compact Dual 4G LTE Mobile Router. The HD2 Mini packs big features, such as dual embedded cellular, SpeedFusion bandwidth bonding, and PoE, into a tough, compact enclosure that stands up to life on the go.
Peplink MAX-HD2-MINI-LTE-E-T Key Features
- Dual Cellular and Redundant SIM Slots
- Fleet Tracking and Management
- SpeedFusion Bandwidth Bonding and Seamless Failover
- Customise Captive Portal
- Certified Toughness
With built-in GPS fleet tracking and InControl cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.
Peplink MAX-HD2-MINI-LTE-E-T Technical SpecificationsGeneral
- WAN Interface: 1x USB Interface, 1x GE, 2x Embedded LTE Modems with Redundant SIM Slots
- LAN Interface: 2x GE
- Router throughput: 300Mbps
- Recommended Users: 150
- LTE Modem: Downlink/Uplink Datarate: 100Mbps/50Mbps
- LTE-A Modem: Downlink/Uplink Datarate: 300Mbps/50Mbps
- Cellular and GPS Antenna Connector: 4x SMA Antenna Connectors 1x SMA GPS Antenna Connector
- Power Input: DC Jack/Terminal Block: 13V – 48V 2A
- Power Output: Up To Three 802.3af/24V Pepwave Passive PoE Outputs#
- Power Consumption: 15W (max.)
- Dimensions: 1.6 x 5.8 x 5 inches, 40 x 147 x 128 mm
- Weight: 0.96 pound, 0.5kg
- Operating Temperature:-40° – 149°F, -40° – 65°C
- Humidity: 15% – 95% (non-condensing)
- Certifications:
- FCC, CE, RoHS, E-Mark
Class I, Division II: Hazardous Locations
RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV)
EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance EN 50155: Railway Applications
EN 61000: Electromagnetic Compatibility - Warranty: 1-Year Limited Warranty
