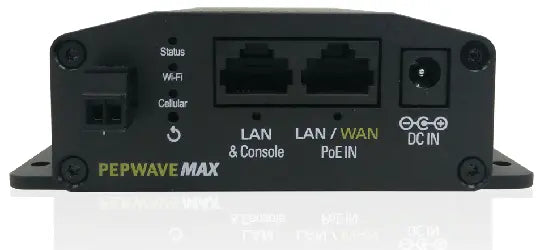

Peplink Pepwave MAX BR1 Mini Industrial-Grade 4G LTE Router (MAX-BR1-MINI-LTE-E-T)
Peplink Pepwave MAX BR1 Mini Industrial-Grade 4G LTE Router (MAX-BR1-MINI-LTE-E-T)
The Peplink MAX-BR1-MINI-LTE-E-T is a rugged 4G LTE Router with add-on automatic failover. The BR1 Mini offers redundant SIM slots with automatic switching, DC or terminal block power capability, advanced GPS fleet tracking, and remote management, all packed into a durable metal enclosure.
Peplink MAX-BR1-MINI-LTE-E-T Key Features
- Out of Band Management, IOT, and M2M Telemetry
- Add-On WAN Capabilities
- Redundant SIM Slots for Multiple Carriers
- Support for T-Mobile (Band 12) and Sprint* (Band 26)
- Fleet Tracking and Management
- Terminal Block for Secure Power Supply
Manage and configure your networking devices securely even if the primary line is not available. Gather data from meters, sensors and other remote equipment via RS-232 serial port adapter. The BR1 Mini LTE-A supports Band 12 (700 Mhz) for T-Mobile and Band 26 (850 Mhz) for Sprint*. These bands penetrate buildings extremely well and also cover longer distances.
General
- WAN Interface: 1x 10/100M Ethernet Port# 1x Embedded LTE Modem with Redundant SIM Slot
- LAN Interface: 1x 10/100M Ethernet Port
- WiFi Interface: 802.11b/g/n Wi-Fi WAN# or AP
- Router throughput: 100Mbps
- Recommended Users: 60
- LTE Modem: Downlink/Uplink Datarate: 100Mbps/50Mbps
- LTE-A Modem: Downlink/Uplink Datarate: 300Mbps/50Mbps
- Cellular and GPS Antenna Connector: 2x SMA Antenna Connectors 1x SMA GPS Antenna Connector 1x Wi-Fi Connector
- Power Input: DC Jack/Terminal Block: 12V – 28V DC, Passive PoE Input (WAN Port, 12V – 28V DC)
- Power Consumption: 12W (max.)
- Dimensions: 4.1 x 4.3 x 1.2 inches, 105 x 110 x 30 mm
- Weight: 0.54 pound, 244 grams
- Operating Temperature: -40° – 149°F, -40° – 65°C
- Humidity: 15% – 95% (non-condensing)
- Certifications:FCC, CE, RoHS EN 61000: Electromagnetic Compatibility EN61373: Rolling Stock
- Warranty: 1-Year Limited Warranty
