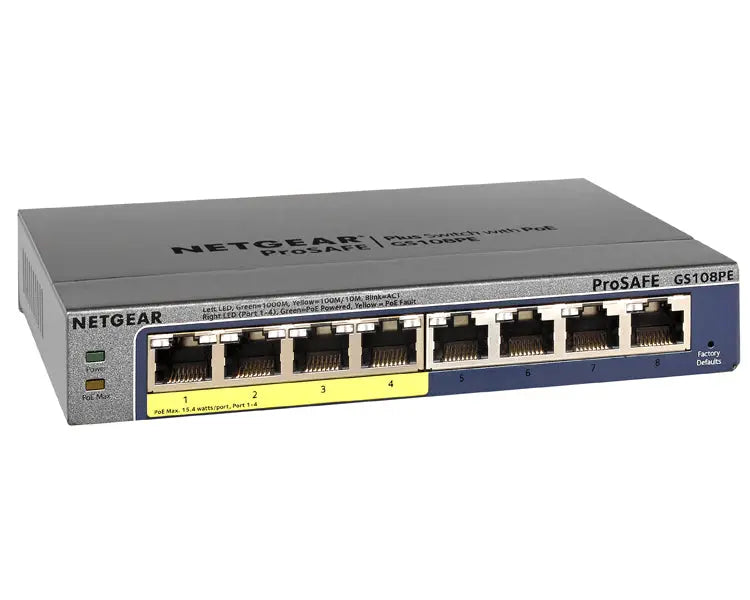

Netgear ProSafe 8 Port Smart Managed Plus Gigabit Desktop Switch With 4 Ports of PoE
![Netgear ProSafe 8 Port Smart Managed Plus Gigabit Desktop Switch With 4 Ports of PoE]()
![Netgear ProSafe 8 Port Smart Managed Plus Gigabit Desktop Switch With 4 Ports of PoE]()
Netgear ProSafe 8 Port Smart Managed Plus Gigabit Desktop Switch With 4 Ports of PoE
Available:In Stock
£101.40
Netgear ProSafe 8 Port Smart Managed Plus Gigabit Desktop Switch With 4 Ports of PoE
The Netgear GS108PE provides fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimise the performance of business networks.
Netgear GS108PE Key Features
Smart Managed Plus Switch delivers network monitoring, traffic prioritisation and VLAN
8 Port
Simple, yet useful network set-up on top of plug-and-play connectivity
Gigabit speed with QoS, VLAN and network monitoring
VLAN support for traffic segmentation
Quality of Service (QoS) for traffic prioritisation
Auto “denial-of-service” (DoS) prevention
Troubleshoot connection issues via cable test
Loop prevention and broadcast storm controls
IGMP snooping v1, v2 and v3 support for multicast optimisation
Rate limiting for better bandwidth allocation
Port mirroring for network monitoring
Jumbo frame support
Port Trunking to increase bandwidth and provide redundant links
Netgear GS108PE Technical Specification
Product Specifications
Gigabit ports: 8
Fiber ports: 0
# of PoE ports: 4
Total PoE power budget (watts): 53
Max MAC entries: 4K
Buffer size: 192KB
Energy Efficient Ethernet (IEEE 802.3az) compliant: Yes
Performance Specification
Forwarding modes: Store-and-forward
Bandwidth: 16Gbps
Priority queuing: Weighted Round Robin (WRR)
Jumbo frame support: Up to 9720 bytes
Acoustic noise (dB) (ANSI-S10.12): 0
Mean Time Between Failures (MTBF) (hrs): 1,242,394
L2 Services - VLANS
VLAN (# Supported): 32
IEEE 802.1Q VLAN Tagging: Yes
Port-based VLAN: Yes
L2 Services - Availability
Link Aggregation/Port Trunking2: No
Number of Static Manual LAGs and # of members: N/A
L2 Services - Multicast Filtering
IGMP Snooping (v1, v2 and v3): Yes
Block unknown Multicast: Yes
Supported Mulitcast groups: 128
L3 Services - DHCP
DHCP client: Yes
Quality of Service (QOS)
Rate limiting: Yes
DSCP: Yes
IEEE 802.1p COS: Yes
Port-based VLAN: Yes
TOS: Yes
WRR (Weighted Round Robin): Yes
Strict Priority Queue Technology: No
IEEE Network Protocols
IEEE 802.3 Ethernet
IEEE 802.3ab 1000BASE-T
IEEE 802.1Q VLAN Tagging
IEEE 802.3i 10BASE-T
IEEE 802.1p Class of Service
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3u 100BASE-T
IEEE 802.3af (PoE)
Management
System Password: Yes
Web browser based management GUI: Yes
PC Utility: Yes
Port Mirroring: Yes
Multiple Language GUI: Yes - English, German, Japanese
Max number of source ports allowed (many to 1): 7
Many-to-One Port Mirroring: Yes
Cable Test utility: Yes
FW upgrade thru Plus Utility (TFTP): Yes
Config download (to Switch) thru Plus Utility: Yes
Config upload (to Server): Yes
Miscallaneous Features
Loop Detection: Yes
DoS Prevention: Yes
Broadcast Storm Control: Yes
Energy Efficient Ethernet (EEE): Yes
LEDs
Per port: Speed, Link, Activity
Per device: Power, Fan and PoE Power Status
Physical Specifications
Dimensions: 158x101x29mm
Weight: 0.54kg
Fan: 0
Power Consumption (when all ports used, line-rate traffic and max PoE)
Worst case, all ports used, line-rate traffic, max PoE (W): 60.0
Heat Dissipation Max/Standby (BTU/hr): Max: 205.2 Min: 3.7
Environmental Specifications2
Operating temperature: 32° to 104°F (0° to 40°C)
Operating Humidity: 90% maximum relative humidity, non-condensing
Operating Altitude: 10,000ft (3,000m) maximum
Storage temperature: –4° to 158°F (–20° to 70°C)
Storage Humidity: 95% maximum relative humidity, non-condensing
Storage Altitude: 10,000ft (3,000m) maximum
Electromagnetic Emissions and Immunity Certifications Class: A
Safety Certifications: CB, CE LVD, CCC, EAC
Package Contents
Smart Managed Plus Switch
Power cord or power adapter (depending on model)
Quick Install Guide
