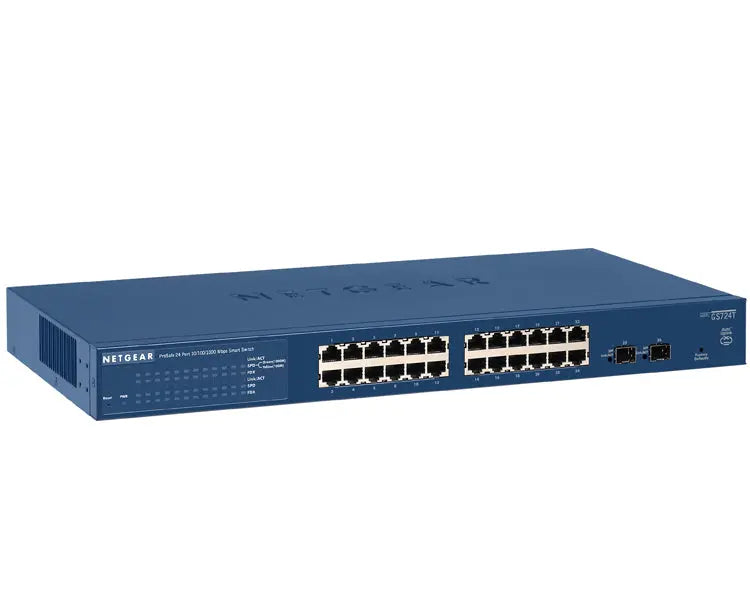

Netgear ProSafe GS724Tv4 24 Port Gigabit Smart Switch

Available:Out of Stock
£242.76
Pre-order
Successful pre-order.Thanks for contacting us!

Netgear ProSafe GS724Tv4 24 Port Gigabit Smart Switch

The Netgear GS724T-400EUS offers new, powerful L2+/Layer 3 Lite features with enhanced performance and usability. They are purposely designed for the future where increased traffic and application-oriented tasks demands more intelligence at the edge, higher realiability and improved network efficiency on top of operational cost savings and ease of management.

Netgear GS724T-400EUS Key Features

  • PoE-capable on all Ports of the Switch
  • IEEE 802.3at PoE Plus Ports
  • Dedicated SFP Fiber Uplinks
  • Dynamic VLAN Assignment
  • Static Routing
  • Comprehensive IPv6 Support for Management, ACL and QoS
  • Build current network with future in mind
  • Robust Security Features
  • Auto Voice and Auto Video
  • Comprehensive QoS Features
  • DHCP Snooping
  • Dual Firmware Images and Configuration Files
  • PoE Timer
  • Protected Ports

This new generation of Gigabit Smart Managed Switch from NETGEAR is the optimised solution providing the best value at an affordable SMB price point.

Netgear GS724T-400EUS Technical Specification

Hardware Features

  • Dedicated SFP Fiber Uplinks
  • Fanless Design
  • Energy Efficient Ethernet (IEEE802.3az)

Software Features

  • Dynamic VLAN Assignment
  • Static Routing
  • Comprehensive IPv6 Support for Management, ACL and QoS
  • IGMP Snooping and MLD Snooping
  • Robust Security Features:
    - 802.1x authentication
    - DHCP Snooping
    - Port-based security by locked MAC
    - ACL filtering to permit or deny traffic based on MAC and IP addresses
  • Auto Voice and Auto Video
  • Comprehensive QoS Features:
    - Port-based or 802.1p-based prioritisation
    - Layer 3-based (DSCP) prioritisation
    - Port-based ingress and egress rate limiting
  • DHCP Snooping
  • Dual Firmware Images and Configuration Files
  • Protected Ports
  • Dynamic ARP Inspection
  • Multicast VLAN Registration
  • EAV (Ethernet Audio/Video Bridging) Support

Product Specifications

  • Interfaces: 24 10/100/1000 Mbps auto-sensing Gigabit Ethernet switching ports, and two dedicated 1000M SFP fiber ports.

Performance Specifications

  • Forwarding modes: Store-and-forward
  • Bandwidth: 52 Gbps
  • Priority queues: 8
  • Priority queuing: Weighted Round Robin (WRR)
  • MAC Address database size: 16k media access control (MAC) addresses
  • Addressing: 48-bit MAC address
  • Multicast groups: 512
  • Number of static routes: 32
  • Number of routed VLANs: 15
  • Number of ARP Cache entries: 512
  • Number of DHCP snooping bindings: 8K
  • Number of DHCP static entries: 1024
  • ACL: 100 shared for MAC, IP and IPv6 ACLs
  • Jumbo frame support: up to 9K packet size
  • Acoustic noise (ANSI-S10.12): 0 dBA
  • Mean Time Between Failures (MTBF): 567,680 hours

L2 Services - VLANS

  • IEEE 802.1Q VLAN Tagging: Yes
  • Protocol based VLANs: Yes
  • MAC based VLANs: Yes
  • Voice VLAN: Based on phones OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP)
  • Protocol-based VLAN: Yes

Network Security

  • IEEE 802.1x
  • Guest VLAN
  • RADIUS based VLAN assignment via .1x
  • MAC-based .1x
  • RADIUS Accounting
  • Network Storm Protection, DoS
  • Broadcast, Unicast, Multicast DoS Protection
  • DoS Attacks
  • Dynamic ARP inspection

L2 Services - Availability

  • IEEE 802.3ad - LAGs
  • LACP (26 LAGS with max. of 8 members in each LAG)
  • Broadcast Storm Control
  • IEEE 802.3x (Full Duplex and flow control)
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree
  • IEEE 802.1s Multiple Spanning Tree

L2 Services - Multicast Filtering

  • IGMP Snooping (v1, v2 and v3)
  • MLD Snooping Support (v1 and v2)
  • IGMP Snooping Queries
  • Block Unknown Multicast
  • Multicast VLAN Registration

L3 Services - DHCP

  • DHCP Client
  • DHCP Snooping

L3 Services - IPV4 Routing

  • Static Routing
  • VLAN Routing
  • IP Source Guard

Network Monitoring and Discovery Services

  • 802.1ab LLDP
  • SNMP: v1, v2c, v3
  • RMON 1,2,3,9

Network Traffic

  • Access Control Lists (ACLs): L2 / L3 / L4
  • IP-based ACLs (IPv4 and IPv6)
  • MAC-based ACL
  • TCP/UDP-based ACL
  • MAC lockdown
  • MAC lockdown by the number of MACs
  • IEEE 802.1x Radius Port Access Authentication
  • Port-based security by locked MAC addresses
  • Dynamic VLAN Assignment
  • Dynamic ARP inspection

Quality of Service (QOS)

  • Access Lists
  • L2 MAC, L3 IP and L4 Port ACLs
  • Ingress rate limiting
  • Egress rate limiting
  • Support for IPv6 fields
  • DiffServ QoS
  • IEEE 802.1p COS
  • Dst MAC and IP
  • IPv4 and v6 DSCP
  • IPv4 and v6 TOS
  • WRR (Weighted Round Robin)
  • Strict Priority Queue Technology
  • Timing and Synchronisation for Time Sensitive Applications (IEEE802.1AS)
  • Stream Reservation Protocol (SRP) (IEEE802.1Qat)
  • Forwarding and Queuing for Time Sensitive Streams (IEEE802.1Qav): up to 24 ports simultaneously
  • Audio Video Bridging Systems (IEEE802.1BA)
  • Auto-VoIP: Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address
  • Auto Video
  • Port Mirroring

IEEE Network Protocols

  • IEEE 802.3 Ethernet
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1Qav1
  • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
  • IEEE 802.3ae 10-Gigabit Ethernet
  • IEEE 802.3ad Trunking (LACP)
  • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
  • IEEE 802.1p Class of Service
  • IEEE 802.1Qat1
  • IEEE 802.1D Spanning Tree (STP)
  • IEEE 802.1s Multiple Spanning Tree (MSTP)
  • IEEE 802.1w Rapid Spanning Tree (RSTP)
  • IEEE 802.1x Radius network access control
  • IEEE 802.1BA1
  • IEEE 802.1AS1

Management

  • Password Management
  • Configurable Management VLAN
  • Admin Access Control via Radius and TACACS+
  • Web-based Graphical User Interface (GUI)
  • Smart Control Center (SCC) for Multi-switch Management
  • IPv6 Management
  • Dual Software (firmware) Image
  • Dual Configuration File
  • SNTP Client over UDP Port 123
  • SNMP v1/v2C
  • SNMP v3 with Multiple IP Addresses
  • RMON 1,2,3,9
  • Port Mirroring
  • Many to One Port Mirroring
  • Cable Test Utility
  • SSL/HTTPS and TLS v1.0 for Web-based access
  • File Transfers (uploads, downloads): TFTP / HTTP
  • HTTP Download (firmware)
  • Syslog (RFC 3164)

LEDs

  • Per Port: Speed, Link, Activity
  • Per Device: Power and Fan (GS748T only)

Physical Specifications

  • Weight: 2.74kg
  • Dimensions (WxDxH): 440 x 204 x 43mm

Power Consumption

  • WorstCase, all ports used, line-rate traffic: 17.4W

Environmental Specifications

  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Operating Humidity: 90% maximum relative humidity, non-condensing
  • Operating Altitude: 10,000ft (3,000m) maximum
  • Storage Temperature: –4° to 158°F (–20° to 70°C)
  • Storage Humidity: 95% maximum relative humidity, non-condensing
  • Storage Altitude: 10,000ft (3,000m) maximum

Electromagnetic Emissions and Immunity

  • Certifications:
    - CE mark, commercial
    - FCC Part 15 Class A, VCCI Class A
    - Class A EN 55022 (CISPR 22) Class A
    - Class A C-Tick
    - EN 50082-1
    - EN 55024
    - CCC

Safety

  • Certifications:
    - CE mark, commercial
    - CSA certified (CSA 22.2 #950)
    - UL listed (UL 1950)/cUL IEC 950/EN 60950
