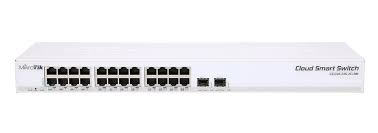

MikroTik Cloud Router Switch CRS326-24G-2S+RM
![MikroTik Cloud Router Switch CRS326-24G-2S+RM]()
![MikroTik Cloud Router Switch CRS326-24G-2S+RM]()
MikroTik Cloud Router Switch CRS326-24G-2S+RM
Available:In Stock
£193.56
MikroTik Cloud Router Switch CRS326-24G-2S+RM
The Mikro Cloud Router Switch CRS326-24G-2S+RM is a SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features! It has an additional CPU unit that allows you to run the the RouterOS operating system on this device, for those who prefer the RouterOS GUI interface to configure switching features. This new switch is also capable to work in routing mode for a few configurable ports.
MikroTik Cloud Router Switch CRS326-24G-2S+RM Key Features
Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation and Port security
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Access Control List
MikroTik neighbor discovery
SNMP v1
Web-based GUI
The “Dual boot” feature allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
MikroTik Cloud Router Switch CRS326-24G-2S+RM Technical Specification
Details
Product code CRS326-24G-2S+RM
Architecture: ARM 32bit
CPU: 98DX3236A1-BTD4C000
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 440 x 144 x 44 mm
License level: 5
Operating System: RouterOS or SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type FLASH
Tested ambient temperature: -40°C .. +60°C
Powering
Max Power consumption: 24W
PoE in: Passive PoE
PoE in input Voltage: 10-30 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 10-30 V
Ethernet
10/100/1000 Ethernet ports: 24
Fiber
SFP+ ports: 2
Peripherals
RJ45 Serial Port
