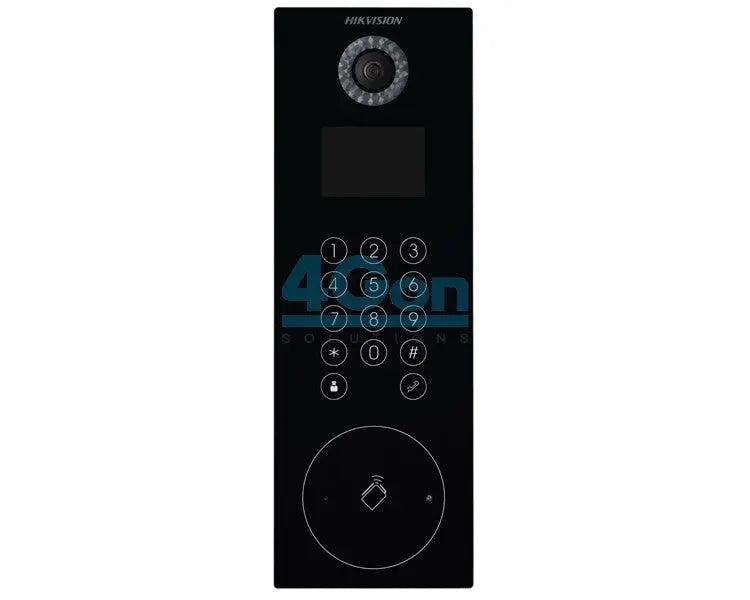

HikVision Video Intercom Door Station (DS-KD8102-V)
![HikVision Video Intercom Door Station (DS-KD8102-V)]()
![HikVision Video Intercom Door Station (DS-KD8102-V)]()
HikVision Video Intercom Door Station (DS-KD8102-V)
Available:In Stock
- Category:HikVision Door Entry Systems
£0.00
HikVision Video Intercom Door Station (DS-KD8102-V)
The HikVision DS-KD8102-V is a video intercom door station offering HD video surveillance with high performance CMOS, tampering alarm function and IR detection. It also features noise suppression and echo cancellation to produce high quality audio. The DS-KD8102-V provides security and flexibility for building entry..jpg "Typical Application")
HikVision DS-KD8102-V Key Features
- Video intercom function
- Access control function
- Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards (This function will be invalid if the card has been issued via the client.)
- Card readers supported
- Self-adaptive visible light supplement
- HD video surveillance with high performance CMOS
- Noise suppression and echo cancellation
- H.264 video compression
- Low illumination
- Remote unlocking via the client or the app
- Remotely answering the call via the client or the app
- Tampering alarm and door magnetic alarm supported
- Auto-uploads alarm messages to master station or the client once the duress code is entered to open the door
- Message notification function
- Auto-uploads captured pictures to FTP or the client
HikVision DS-KD8102-V Technical Specification
System parameters
- Processor: High-Performance Embedded SOC Processor
- Operation system: Embedded Linux Operation System
Video parameters
- Camera: CMOS Low Illumination 1.3 MP HD Colourful Camera
- Video compression standard: H.264
- Resolution: 1280 × 720
- Video frame rate: PAL: 25 fps, NTSC: 30 fps
Display parameters
- Display screen: 3.5-Inch Colourful TFT LCD
- Display resolution: 480 × 320
- Operation method: Capacitive Touch Keypad
- Operation interface: LCD Display, Easy Menu
Audio parameters
- Audio input: Built-in Omnidirectional Microphone
- Audio output: Built-in Loudspeaker
- Audio compression standard: G.711 U
- Audio compression rate: 64 Kbps
- Audio quality: Noise Suppression and Echo Cancellation
Access control parameters
- Internal card reader: Built-in IC Card Reader
- External card reader: Wiegand 26, Wiegand 34, or RS-485 IC Reader
- Door magnetic detection: Detects Door Magnetic Status
IR human detection
- Approaching detection: Supporting IR Detection, Vertical Distance: from 60 cm to 80 cm
Light supplement
- Light supplement mode: Visible Light Supplement
Network parameters
- Ethernet: 10/100/1000 Mbps Self-Adaptive Ethernet
- Network protocol: TCP/IP, RTSP
Alarm parameters
- Alarm input: Door Magnetic Alarm, Tampering Alarm
Device interfaces
- Network interface: 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
- RS-485: 1 RS-485 Half-Duplex Port
- I/O input: 8
- I/O output: 4
- Wiegand: 1 Wiegand Port for Accessing Wiegand IC Card Reader
- USB: 1 USB 2.0, Supporting U-Disk
General
- Material: Plastic
- Power supply: 12 VDC
- Power consumption: ≤15 W
- Working temperature: -40° C to +60° C (-40° F to 140° F)
- Working humidity: 10% to 90%
- IP protection level: IP65
- Dimensions (L × W × H): 418 mm × 145 mm × 61 mm (16.5" × 5.7" × 2.4")
- Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
