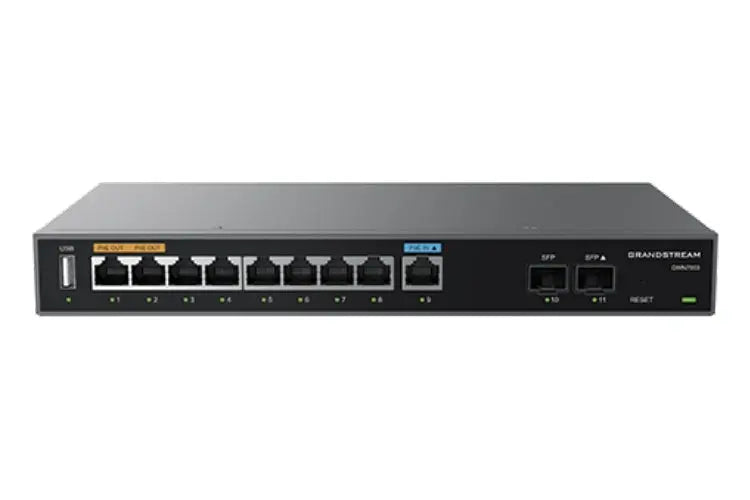

Grandstream GWN7003 Multi-WAN Gigabit Router

The Grandstream GWN7000 Series comprises Multi-WAN Gigabit VPN routers featuring integrated firewalls. These routers enable businesses to establish extensive wired, wireless, and VPN networks across single or multiple sites.

Grandstream GWN7003 Key Features

  • 1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af
  • Supports multiple Gigabit RJ45 ports and Gigabit SFP ports
  • Built-in VPN support allows easy access to corporate networks for remote employees
  • Multiple WAN ports with load balancing and failover to maximize connection reliability
  • Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
  • Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Supports application, URL, DNS, and web content filtering to block access from unsecure contents
  • Embedded controller can manage itself and up to 150 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited routers and GWN APs

The adaptable GWN7003 excels in various deployments—small-to-medium businesses, education, healthcare, and more. Its robust routing, integrated VPN, security features, and user-friendly tools make it a reliable networking solution..

With 2 Gigabit SFP ports, 9 Gigabit Ethernet ports, and 2 PoE outputs, the GWN7003 offers versatile connectivity. Managing up to 150 GWN Series Wi-Fi Access Points via an embedded controller, it seamlessly works with Grandstream's GWN.Cloud and GWN Manager tools for simplified network management..

Grandstream GWN7003 Technical Specification

CPU

  • Dual ARM Cortex A53 1GHz

Memory and NAT Sessions

  • 512MB RAM, 256MB Flash, 60K NAT sessions

Network Interfaces

  • 2x Gigabit SFP ports and 9x Gigabit Ethernet ports (WAN/LAN configurable)

NAT Throughput and IPsec VPN Throughput

  • NAT Throughput: 2.2Gbps
  • IPsec VPN Throughput: 530Mbps

Auxiliary Ports and Mounting

  • 1x USB 2.0 port, 1x Reset Pinhole
  • Mounting: Desktop and wall mounting

LEDs

  • 13x single-color LEDs for device tracking and status indication

Connection Type and Network Protocols

  • DHCP, Static IP, PPPoE, PPTP, L2TP
  • Network Protocols: IPv4, IPv6, IEEE802.1Q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab

QoS (Quality of Service)

  • VLAN, TOS
  • Support multiple traffic classes, filter by port, IP address, DSCP, and policing
  • App QoS
  • VoIP Prioritization

Firewall and Security

  • DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
  • Application/protocol monitoring and traffic statistics
  • Content filtering: Supports Application/URL/DNS/Web Content Filtering
  • Safe search

VPN

  • SSL VPN Server / Client-to-Site
  • IPsec VPN Client-to-Site / Site-to-Site
  • PPTP VPN Server / Clien-to-Site
  • L2TP Client-to-Site
  • WireGuard (pending)
  • IPSec Encryption: DES, 3DES, AES
  • IPSec Authentication: MD5, SHA-1, SHA2-256
  • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
  • IPSec Protocols: ESP
  • IPSec NAT Traversal
  • SSL VPN Encryption: AES, DES
  • SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
  • SSL VPN Certificate: RSA
  • PPTP Encryption: MPPE 40-bit, 128-bit, IPSec
  • PPTP/L2TP Authentication: MS-CHAPv1/2

Max Concurrent VPN Tunnels

  • Up to 100 Tunnels

Network Management

  • GWN7003 embedded controller for self and up to 150 GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN Routers and GWN APs

PoE Input

  • Standard: IEEE 802.3af/at

PoE Output

  • 2x PoE out ports
  • Passive 48V or IEEE802.3af

PoE Power Budget

  • 24V DC 1A: 12.8W
  • 24V DC 1.5A: 24.8W

Power & Green Energy Efficiency

  • Universal power adaptor included: Input: 100-240VAC 50-60Hz, Output: 24V DC 1A (24W)

Environmental

  • Operation: 0°C to 40°C
  • Storage: -30°C to 60°C
  • Humidity: 10% to 90% Non-condensing

Physical

  • Unit Dimension: 260mm(L)x149.35mm(W)*35mm(H); Unit Weight: 1096g
  • Entire Package Dimension: 297mm(L)x255.5mm(W)x54mm(H); Entire Package Weight: 1443g

Package Content

  • GWN7003 Router
  • Universal Power Supply
  • Network Cable
  • Quick Installation Guide

Compliance

  • FCC
  • CE
  • RCM
  • IC
  • UKCA
