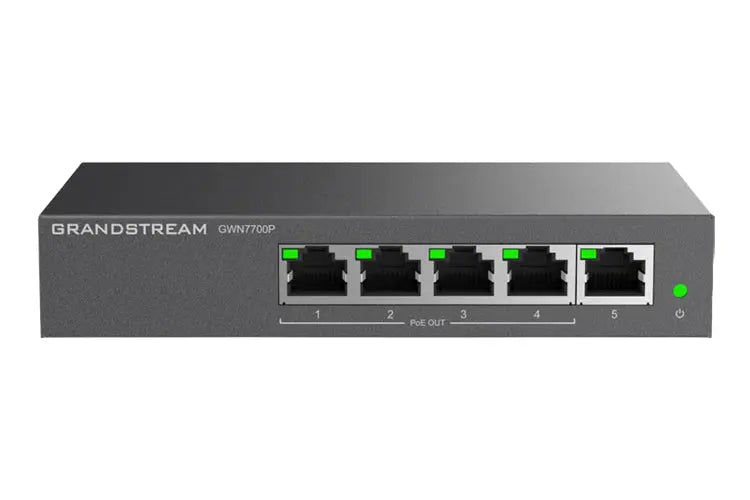

Grandstream GWN7700P Unmanaged Network Switch

Available:In Stock
£35.64

Grandstream GWN7700P Unmanaged Network Switch

The Grandstream GWN7700 series introduces unmanaged network switches, providing a cost-effective method to add high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration, offering a desktop or wall-mountable design with auto MDI/MDIX to eliminate crossover cable needs. Each port supports auto-negotiation, allowing compatibility with 10/100/1000Mbps devices.

Grandstream GWN7700P Key Features:

  • 5/8/16/24/48 Gigabit RJ45 ports
  • 4 port PoE+ output
  • Green technology reduces power consumption
  • LED Indicators;
    • Per port: Link/Activity/Speed
    • Per device: Power
  • Auto MDI/MDIX crossover for all ports
  • 802.3 af/at compliant Up to 30W on each port
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Supports long cable connection
  • QoS - Supports Default Strict Priority when present

In summary, the GWN7700 series of unmanaged network switches efficiently enhances connectivity. Its features like auto MDI/MDIX, and auto-negotiation cater to diverse networking needs, making it an ideal choice for various setups.

Grandstream GWN7700P Technical Specifications

General

  • Gigabit ports: 5
  • PoE ports: 4
  • Enclosure: Metal

Mounting

  • Desktop/ Wall-Mount

Standards and Protocols

  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3at

Port Feature

  • 5× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media

  • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

PoE Configuration

  • 1~4 Ports 802.3 af/at compliant
  • Up to 30 W on Each Port, Total 60W Power Budget;
  • Overload to cut off the lowest-priority port.
  • Priority: Port 4 to Port 1

LED Indicators

  • Per port: Link/Activity Green
  • Per device: Power Green

Mac Address Table

  • 2K

Switching Capacity

  • 10Gbps

Jumbo Frame

  • 9KB

Advanced Features

  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP:
    • IGMP Fast-Leave
    • IGMP Snoop
    • Route Port Autolearn
    • Query Refresh Member Port

Power Adapter

  • External 48-53.5VDC/1.22A

Max Power Consumption by Base System

  • 2W (excluding PoE output power)

Environmental

  • Operating Temperature: 0 to 40 °C (32 to 104 °F)
  • Storage Temperature: -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity: 10% to 90% Non-condensing
  • Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

  • Unit: 145 x 80 x 27mm
  • Package: 230 x 190 x 51mm

Weight

  • Unit Weight: 0.26KG
  • Entire Package: 0.75KG

Package

  • 1x Switch, 1x Power Adapter, 1x QIG

Compliance

  • FCC
  • CE
  • RCM
  • IC
  • UKCA
