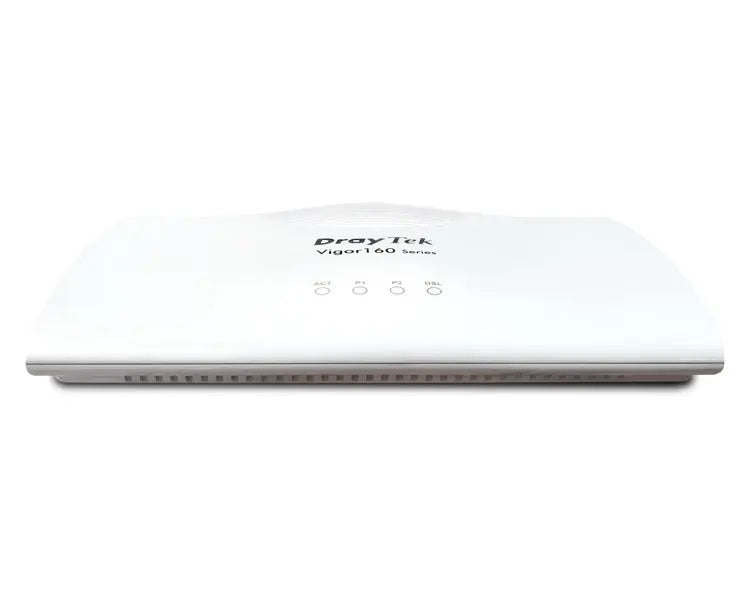

Draytek Vigor 166 G.Fast & VDSL2 35b Modem (V166-K)
Draytek Vigor 166 G.Fast & VDSL2 35b Modem (V166-K)
The Draytek Vigor V166-K is a G.Fast and VDSL2 35b modem to Ethernet bridge, connecting G.Fast or VDSL to your Ethernet-based Router or Firewall. It providesproven compatibility with UK G.Fast and VDSL2 technologies; extensively tested and tuned to provide a robust and reliable DSL connection.
Draytek Vigor V166-K Key Features
- G.fast (Ultrafast Fibre) & VDSL2 (Superfast Fibre) to Ethernet Modem
- Bridges DSL to your Router or Firewall
- Pre-Configured to work with most ISPs
- IPv6 and IPv4 Compatible
- Compatible with IPTV and Video on Demand (YouView, Sky Q)
- 2 Gigabit LAN Ports
- Optional VigorCare Available
G.Fast & VDSL2 35b Capable
Up to 330mbps download and 50mbps upload with G.Fast technology. Can be used with all the latest DSL standards, with Vectoring and 35b SuperVectoring.
Benefits: High performance and great compatibility.
Two Gigabit LAN Ports
Connect two devices to the Vigor 166 with 2 Gigabit (10/100/1000Mbps) LAN ports. No need to disconnect Ethernet WAN to check connectivity.
Benefits: More convenient cabling for diagnostics.
Add DSL connectivity to any Router
Ideal Partner device for DrayTek dual-WAN products or any other vendor’s Ethernet WAN firewall. Reports DSL Line Status on DrayTek Vigor routers.
Benefits: Connect any Router or Firewall to G.Fast.
No Setup Needed
Works as a modem with most ISPs, straight out of the box. Pre Configured to work with most UK ISPs. Just set the username and password on your router.
Benefits: Quick and easy to install.
Full-Bridge Modem and More
Two operation modes for the Vigor 166 allow it to operate as a fully bridged DSL to Ethernet Modem, or as a mini Router with NAT DMZ Host.
Benefits: Extensively configurable to suit any application.
Wall or Shelf Mountable
Can be installed securely on a wall or shelf with screw fixings to hold it in place. Mounting kit included.
Benefits: Flexible and discrete installation.
Physical Interfaces
- 2 x Gigabit Ethernet (1000Mb/s) Ports
- WAN1 : G.Fast/VDSL - RJ-11
- Recessed Factory Reset button
Performance
- Max G.fast Sync Rate: 1.3Gb/s (dependant on ISP & Exchangeequipment)
- Max VDSL2 35b Sync Rate: 300Mb/s
- Max VDSL2 17a Sync Rate: 100Mb/s
- Max ADSL2+ Sync Rate: 20Mb/s
- NAT Performance:
- Firewall: Up to 700Mb/s (940Mb/s with Hardware Acceleration)
- NAT Sessions: 10,000
WANFeatures
- Pre-Configured with OpenReach network VLAN tag 101
- WAN1 Service & Customer (double-tag) VLAN support
- Maximum MTU 1508
G.Fast & DSL Compatibility
- BT Infinity Option 1 & Option 2 Compatible
- Compliant with Openreach SIN 527 & SIN 498
- Auto Detection of G.Fast and VDSL line modes
- Support for G.INP & Vectoring
- G.Fast Standards:
- ITU-T G.9700, G.9701 G.Fast
- Profile: 106MHz - VDSL Standards:
- ITU-T G.993.1 VDSL
- ITU-T G.993.2, G.997.1 VDSL2
- Band Plan: G.998, G.997
- Annex A, Annex B, Annex C
- VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
- OLR, UPBO, DPBO Supported
- US0 Supported
- Loop Diagnostic Mode
- DSL Forum WT-114 - ATM Protocols:
- RFC-2684/RFC-1483 Multiple Protocol over AAL5
- RFC-2516 PPP over Ethernet
- RFC-2364 PPP over AAL5
- Support for RFC4638 for MTU up to 1500
Network Features
- DSL Status Display with DrayTek Vigor routers
Management Interfaces
- Web-Based User Interface (HTTP / HTTPS)
- CLI ( Command Line Interface ) via Web Console, Telnet or SSH
- Configuration Backup / Restore
- Firmware Upgrade via Web Interface, TFTP
Router mode Firewall & NAT Features
- DMZ Host
- NAT Port Forwarding
- NAT Port Redirection
- ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
- VPN Pass-Through: PPTP, L2TP, IPsec
- Object-based IPv4 / IPv6 Firewall
- MAC Address Filter
- SPI ( Stateful Packet Inspection ) with FlowTrack Mechanism
- DoS / DDoS Protection
- IP Address Anti-spoofing
- Bind IP to MAC Address
- DHCP Server
- Static Route & IP Routed Subnet
- URL Keyword Filtering
- Dynamic DNS
- IGMP Proxy
Router mode WAN Protocols
- DHCP Client
- Static IP
- PPPoE / PPPoA
- IPv6: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 StaticTunnel
- Multi-PVC/VLAN virtual WAN interfaces for Management / IPTVservices
Router mode Management Features
- Syslog
- SNMP v2 & v3
- VigorACS Management
- TR-069
- TR-104
- NTP Client
- Built-in Diagnostic Function (ping, traceroute)
Operating Requirements
- Wall Mountable
- Operating Temperature : 0 °C ~ 45 °C
- Storage Temperature : -25 °C ~ 70 °C
- Humidity 10% ~ 90% (non-condensing)
- Power Consumption: 6.6 Watt Max.
- Dimensions:
- Length: 181mm
- Width: 125mm
- Height: 40mm - Weight: 280g
- Operating Power: DC 12V 1A (via external PSU, supplied)
- Power Requirements : 220-240VAC
Box Contents
- Vigor 166 Modem
- Quick Start Guide
- RJ-11 DSL Cable
- Cat-5e RJ-45 Cable
- Screws & wall plugs for wall mounting
- DC 12V PSU
