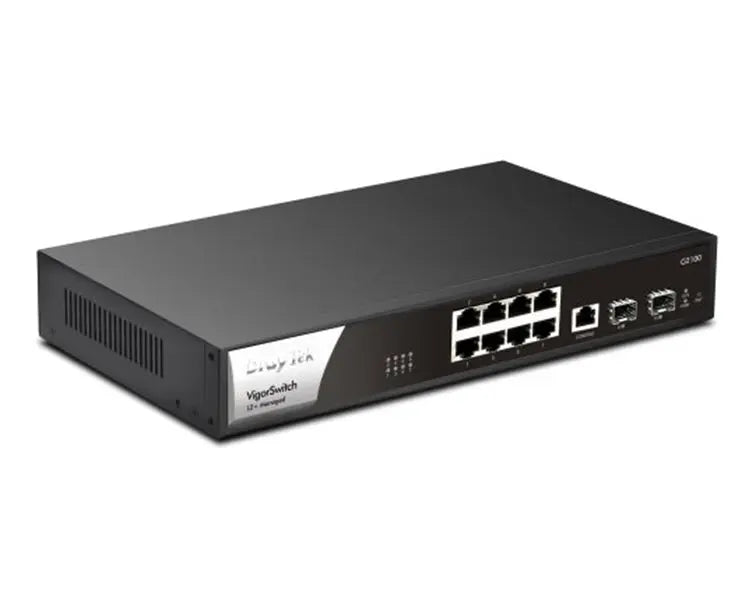

DrayTek VigorSwitch VSP2100-K 8+2 Port Gigabit Switch
![DrayTek VigorSwitch VSP2100-K 8+2 Port Gigabit Switch]()
![DrayTek VigorSwitch VSP2100-K 8+2 Port Gigabit Switch]()
DrayTek VigorSwitch VSP2100-K 8+2 Port Gigabit Switch
Available:In Stock
£195.48
DrayTek VigorSwitch VSP2100-K 8+2 Port Gigabit Switch
The DrayTek VigorSwitch VSP2100-K is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it is ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow businesses to improve network stability and security.
DrayTek VigorSwitch VSP2100-K Key Features
- 8 x RJ-45 Gigabit Ethernet Ports
- PoE+ on all RJ-45 ports
- 140-watt Power-over-Ethernet budget
- 2 x SFP Gigabit Ports for Uplink / Fibre
- Cloud Managed with VigorACS, or standalone operation
- ONVIF IP Camera Surveillance Management with Device Check
- 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
- VLAN Routing & Static Route with DHCP server / relay
- QoS for Application traffi c prioritisation802.1x RADIUS / TACACS+ Port Authentication with Accounting
- Access Control List (ACL) Port Security
- IPv4 and IPv6 Support with DrayTek’s IP Confl ict Prevention system
- Console PortRack mountable with fittings included
DrayTek VigorSwitch VSP2100-K Technical Specifications
Physical Interfaces:
- 8 RJ-45 Ethernet Ports – 10/100/1000Mbps
- 2 SFP Ports – 1000Mbps
- Console Port (RJ-45 physical, RS-232 electrical)
- Factory Reset Button
PoE Specification (VigorSwitch P2100 only)
- 8 Power over Ethernet LAN ports - PoE PSE Mode A
- IEEE 802.3af PoE & 802.3at PoE+ (High Power) compliant
- 140 Watts Total Power Budget for PoE
- Up to 30 watts per port
- Auto Detection of Powered Device (PD) and Consumption Levels
- Per Port PoE Status LED Indicators
- Alert LED and Mail Alert for high PoE Usage
- Port Power Consumption Monitoring via Web Interface & CLI
- Circuit Protection to Prevent Power Interference between Ports
- PoE PD Monitoring & Maintenance Features (per port)
- Scheduling
-PoE PD Priority
- Restart PoE PD if not responding to ping
- Restart PoE IP Camera if not providing camera output
VLAN:
- 802.1q Tag-based VLAN
- Port-based and MAC-based VLANs
- QinQ (Basic)
- GVRP – General VLAN Registration Protocol
- Up to 256 VLANs (out of 4096 VLAN IDs)
- 802.1v Protocol-Based VLAN
- Voice VLAN (OUI Mode)
- Surveillance VLAN (OUI Mode)
- Protocol VLAN
- MAC-based VLAN
- Management VLAN
- Port Isolation
QoS
- Support 8 priority queues
- Port-Based rate control (Ingress & Egress)
- Priority queue schedule (WRR or Strict Priority)
- Rate Limit
- Class of Service
- 802.1p CoS
- DSCP
- CoS-DSCP
- IP Precedence ToS
Network Security
- IP Source Guard with ARP inspection
- Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
- DoS Attack protection
- AAA Authentication
- MAC Authentication
- Protected Port / Port Isolation
- Static Port Security
- Dynamic ARP Inspection
- DHCP Snooping with Option 82
- Loop Detection & Prevention
- Access Control Lists (ACL)
- Up to 512 ACL Entries
- Source and destination MAC
- VLAN ID
- IPv4/v6 address
- Protocol
- TCP/UDP port
Spanning Tree
- Spanning Tree Protocol (STP)
- Rapid Spanning Tree Protocol (RSTP)
- Multiple Spanning Tree Protocol (MSTP)
Link Aggretation
- Combine multiple ports to increase bandwidth
- 8 Aggregation Groups
- Up to 8 ports in each group
- LACP or Static setup
- Supports traffi c load balancing
Networking Performance
- Switching Capacity: 20Gbps
- Forwarding Rate: 14.88Mpps (64 bytes)
- Jumbo Frames up to 9KB
- Packet Buff er size: 4.1Mbit
Multicast
- Up to 256 multicast groups
- Multicast Group Filtering / Throttling
- IGMP Snooping V2/V3 (BISS)
- IGMP V2/V3 Querier
- Multicast VLAN registration
- MLD Snooping V1/V2
- Immediate Leave
- Report Suppression
- IGMP/MLD Querier
AAA (Authentication, Authorisation, Accounting)
- RADIUS / TACACS+ Authentication for Management
- Multiple AAA Server
- MAC / Inaccessible Authentication bypass
- RADIUS Authentication 802.1X
- Accounting
- Guest VLAN - Port based Authorisation
- 802.1X Single/Multi
- MAC-based
- Web-based - Attribute Assignment
- User Privilege
- VLAN - TACACS+ Authentication
- Port Authorisation
- Accounting
ONVIF Surveillance Management
- Discovery of ONVIF-compliant IP Cameras
- Surveillance Topology
- Real-Time Video Streaming
- ONVIF Device Maintenance
- Device Information
- Network Settings Configuration
- Time Settings
- Reboot
- Reset to Factory Default Settings
- Ping Check with Mail Alert on disconnection
Management:
- Central Management
- VigorACS
- VigorConnect
- Vigor Router Switch Management (requires router firmware support) - IPv4 & IPv6 Dual-Stack
- LLDP(802.1ab) + MED
- Web User Interface (HTTP or HTTPS)
- Firmware Upgrade/Backup by HTTP/HTTPS
- HTTP (Non-TLS) can be disabled for increased security
- Configuration Backup/Restore
- Factory Default
- System Reboot
- Command Line Interface (CLI) via SSH/Telnet
- Console Port (RJ45) for CLI management
- OpenVPN Client with Certificate-based auth
- SNMP v1, v2c, v3 (with Generic Traps)
- RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
- SNTP (Simple Network Time Protocol)
Diagnostics:
- Port Status & Usage display
- CPU/RAM Usage display
- MAC Address Table
- Device Check
- Syslog
- Mail Alert
- Port Status
- Port Speed Change
- System Restart
- Device Check
- IP Conflict
- ONVIF IP Camera Snapshot - Port Mirroring
- Ping Diagnostics
- Port-based Cable Test
Layer 3 networking features
- tatic Route
- VLAN Routing
- DHCP Server (from firmware 2.6.8)
IPv4 features
- DHCP Client
- DNS Client
- DHCP Server (from firmware 2.6.8)
- Up to 8 subnets
- Option 82, 66, 67
- DHCP Relay
- DHCP Snooping
- DHCP IP Source Guard
IPv6 Features
- Auto Configuration
- Static IPv6 Address & Prefix Length
- Static IPv6 Default Gateway
- IPv6 Neighbour Discovery (ND)
- IPv6 Duplicate Address Detection
- ICMPv6
- DHCPv6 Client
General IEEE Standards Compliance
- 802.3af PoE
- 802.3at PoE+
- 802.3 10Base-T
- 802.3u 100Base-T
- 802.3ab 1000Base-T
- 802.3x Flow Control
- 802.3 Auto-Negotiation
- 802.1q Tag-based VLAN
- 802.1p Class of Service
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- 802.3ad LACP
- 802.1ad QinQ
- 802.1x Port Access Control
- 802.1AB LLDP
- 802.3az EEE
Operating Requirements
- Power Input Requirements: 100-240VAC
- Power supply: Internal
- Maximum Input Power Consumption
- VigorSwitch G2100: 18 Watts
- VigorSwitch P2100: 164.3 Watts - Cooling: Passively cooled
- Operating Temperature: 0 °C to 50 °C
- Storage Temperature: -20 °C to 70 °C
- Operating Humidity: 5% to 90% RH (non-condensing)
Physical Specifications:
- Rack mountable: 1U
- Dimensions:
- VigorSwitch G2100: 270 x 181 x 44 mm (W x D x H)
- VigorSwitch P2100: 319 x 208 x 44 mm (W x D x H) - Weight:
- VigorSwitch G2100: 1.78 kg (3lb)
- VigorSwitch P2100: 2.61kg (5lb)
Box Contents:
- VigorSwitch P2100 Network Switch
- UK IEC13 Power Cable
- 1U Rack Mount Fittings
- Quick Start Guide
