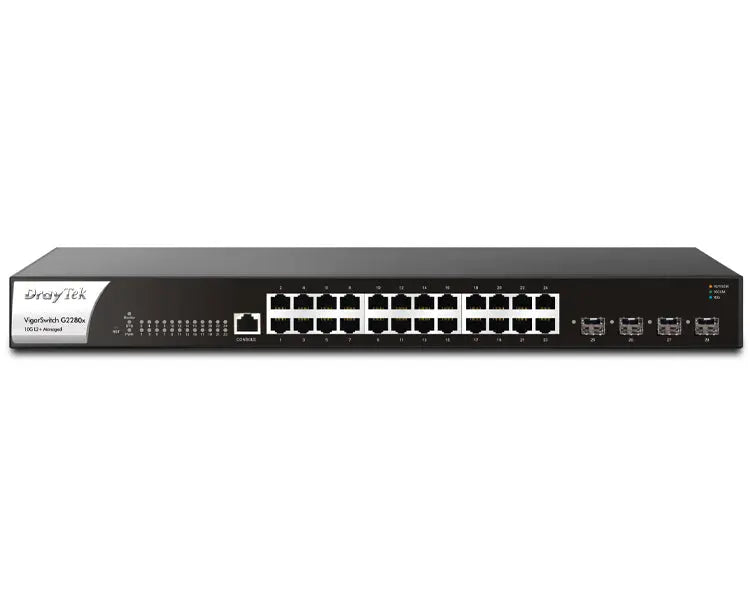

DrayTek VigorSwitch G2280x 10GB switch with 4 10GB SFP+ ports and 24GB ports

Available:In Stock
£267.96

DrayTek VigorSwitch G2280x 10GB switch with 4 10GB SFP+ ports and 24GB ports

The DrayTek VigorSwitch G2280x is a 10-Gigabit, high-performance, fully managed Gigabit Ethernet switch with four 10Gb SFP+ ports and 24 Gb ports that can be managed locally or centrally.

DrayTek VigorSwitch G2280x Key Features

  • 24 x RJ-45 Gigabit Ethernet Ports
  • 4 x SFP+ 10GbE Ports for Uplink / Fibre
  • 802.1q VLANs (Tag, Port & MAC-based)
  • VLAN Routing & Static Route with DHCP server / relay
  • Virtual Router Redundancy Protocol
  • QoS for Application traffic prioritisation
  • 802.1x RADIUS / TACACS+ Port Authentication with Accounting
  • Voice VLAN for QoS (OUI Mode)
  • Access Control List (ACL)
  • Port Mirroring & Link Aggregation
  • IGMP Snooping/Querier (Up to 256 Multicast Groups)
  • IPv4 and IPv6 Support
  • Hardware Monitoring
  • Centrally managed or standalone operation
  • Console Port

High Speed 10 Gigabit SFP+ Uplinks
Four SFP+ ports allows your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network and easily increase network throughput and meet demanding bandwidth requirements.

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the devices Web Interface. Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch. Provides a fast and secure bridge between networks.

Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Secure & control access to your network.

Voice VLAN & Surveillance VLAN
Automatically assign VLANs and QoS configuration to devices with matching MAC address OUI upon connection to the switch. Reduces broadcast traffic and allows more control when implementing security policies.

Hardware Monitoring
Monitor and graph switch temperature and power supply status remotely, with alerts for temperature & power supply issues. Receive email notification alerts for power loss, downtime or configuration changes.

ONVIF IP Camera Management
Manage ONVIF capable IP Cameras & NVR through the VigorSwitch. Automatically detect IP Camera topology on the network and view the video feed of connected cameras. Simplify management of connected IP Cameras and receive automated alerts for throughput issues.
ONVIF IP Camera Management

IP Conflict Prevention
Use DrayTek’s IP Conflict Prevention wizard to lock in the network setup, protecting against ARP spoofing and unknown DHCP servers. Improves network security and quickly and easily determines the cause of network issues if they occur.

DrayTek VigorSwitch G2280x - Technical Specifications

Physical Interfaces

  • 24 RJ-45 Ethernet Ports – 10/100/1000Mbps
  • 4 SFP+ Ports – 1000Mbps/10Gbps
  • Console Port (RJ-45 physical, RS-232 electrical)

VLAN

  • 802.1q Tag-based VLAN
  • Port-based and MAC-based VLANs
  • QinQ (Basic)
  • GVRP – General VLAN Registration Protocol
  • Up to 255 VLANs (out of 4096 VLAN IDs)
  • 802.1v Protocol-Based VLAN
  • Voice VLAN (OUI Mode)
  • Surveillance VLAN (OUI Mode)
  • Protocol VLAN
  • MAC-based VLAN
  • Management VLAN
  • Port Isolation

QoS

  • Support 8 priority queues
  • Port-Based rate control (Ingress & Egress)
  • Priority queue schedule (WRR or Strict Priority):
    - 802.1p CoS
    - DSCP
    - CoS-DSCP
    - IP Precedence ToS
  • Rate Limit
  • Class of Service

QoS

  • Support 8 priority queues
  • Port-Based rate control (Ingress & Egress)
  • Priority queue schedule (WRR or Strict Priority):
    - 802.1p CoS
    - DSCP
    - CoS-DSCP
    - IP Precedence ToS
  • Rate Limit
  • Class of Service

Network Security

  • IP Source Guard with ARP inspection
  • Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
  • DoS Attack protection
  • AAA Authentication
  • MAC Authentication
  • Protected Port / Port Isolation
  • Static Port Security
  • Dynamic ARP Inspection
  • DHCP Snooping with Option 82
  • Loop Detection & Prevention
  • Access Control Lists (ACL):
    - Up to 512 ACL Entries
    - Source and destination MAC
    - VLAN ID
    - IPv4/v6 address
    - Protocol
    - TCP/UDP port

Spanning Tree

  • Spanning Tree Protocol
  • Rapid Spanning Tree Protocol
  • Multiple Spanning Tree Protocol

Link Aggregation

  • Combine multiple ports to increase bandwidth
  • 8 Aggregation Groups
  • Up to 8 ports in each group
  • LACP or Static setup
  • Supports traffic load balancing

Networking Performance

  • Switching Capacity: 128Gbps
  • Forwarding Rate: 95.24Mpps
  • MAC Addresses Supported: 16,000
  • Jumbo Frames up to 12KB
  • Packet Buffer size: 12Mbit
  • Layer 3 Routing Table: Up to 1000 Entries

Multicast

  • Up to 256 multicast groups
  • Multicast Group Filtering / Throttling
  • IGMP Snooping V2/V3 (BISS)
  • IGMP V2/V3 Querier
  • MLD Snooping V1/V2:
    - Immediate Leave
    - Report Suppression
    - IGMP/MLD Querier
  • Multicast VLAN registration

AAA

  • RADIUS / TACACS+ Authentication for Management
  • Multiple AAA Server
  • MAC / Inaccessible Authentication bypass
  • RADIUS Authentication 802.1X
  • Multiple AAA Server
  • Accounting
  • Guest VLAN
  • Port based Authorisation:
    - 802.1X Single/Multi
    - MAC-based
    - Web-based
  • Attribute Assignment:
    - User Privilege
    - VLAN
  • TACACS+ Authentication:
    - Port Authorisation
    - Accounting*

Management

  • Virtual Stacking – Single IP Management *
  • OpenVPN Client
  • ONVIF – IP Camera Management
  • Running/Startup/Backup Configuration
  • sFlow
  • IPv4 & IPv6 Dual-Stack
  • LLDP(802.1ab) + MED
  • Web User Interface (HTTP or HTTPS)
  • Firmware Upgrade/Backup by HTTP/HTTPS
  • HTTP (Non-TLS) can be disabled for increased security
  • Configuration Backup/Restore
  • Factory Default
  • System Reboot
  • Dual Firmware Image (Active & Backup Firmware)
  • Command Line Interface (CLI) via SSH/Telnet
  • Console Port (RJ45) for CLI management
  • DrayTek Switch Management support via router (requires router firmware support)
  • VigorACS Compatible (TR-069)
  • SNMP v1, v2c, v3 (with Generic Traps)
  • RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
  • SNTP (Simple Network Time Protocol)

Diagnostics

  • Port Status & Usage display
  • CPU/RAM Usage display
  • Event Log via Syslog or email
  • Port Mirroring
  • Ping Diagnostics
  • Port-based Cable Test

Hardware Monitor

  • Remote Monitoring through Web Interface & VigorACS *
  • Hardware Monitor Data Recording & Graphing
  • Email & LED alert on voltage high/low and overheat
  • Temperature Monitoring
  • Voltage Monitoring
  • Power Saving Mode

Layer 3 Networking Features

  • Static Route
  • VLAN Routing
  • Virtual Router Redundancy (VRRP) Protocol *

IPv4 Features

  • DHCP Client
  • DNS Client
  • DHCP Server *
    - Option 82, 66, 67
    - DHCP Relay
    - DHCP Snooping
    - DHCP IP Source Guard

IPv6 Features

  • Auto Configuration
  • Static IPv6 Address & Prefix Length
  • Static IPv6 Default Gateway
  • IPv6 Neighbour Discovery (ND)
  • IPv6 Duplicate Address Detection
  • ICMPv6
  • DHCPv6 Client

General IEEE Standards Compliance

  • 802.3 10Base-T
  • 802.3u 100Base-T
  • 802.3ab 1000Base-T
  • 802.3ae 10GBase-T
  • 802.3x Flow Control Capability
  • 802.3 Auto-negotiation
  • 802.3ad Port trunk with LACP
  • 802.3az Energy Efficient Ethernet
  • 802.1q VLAN
  • 802.1p Class of Service
  • 802.1d Spanning Tree
  • 802.1w Rapid Spanning Tree
  • 802.1s Multiple Spanning Tree
  • 802.1x Port Based Network Access Control
  • 802.1ab Link Layer Discovery Protocol (LLDP)
  • 802.1ad QinQ

Operating Requirements

  • Power Input Requirements: 100-240VAC
  • Power supply: Internal
  • Maximum Input Power Consumption: 25 Watts
  • Cooling: Passively cooled
  • Operating Temperature: 0 °C to 45 °C
  • Storage Temperature: -20 °C to 70 °C
  • Operating Humidity: 10% to 90% RH (non-condensing)

Physical Specifications

  • Dimensions: 441 x 270 x 45 mm (W x D x H)
  • Rack mountable: 1U
  • Weight: 4.32Kg (excluding SFP modules/cables)
  • Brackets included for rack or wall mounting

Additional

    • ROHS & CE Compliant
    • Warranty: 2 Year Manufacturer’s RTB

* - Not available in initial release firmware but will be available in a later firmware update.
