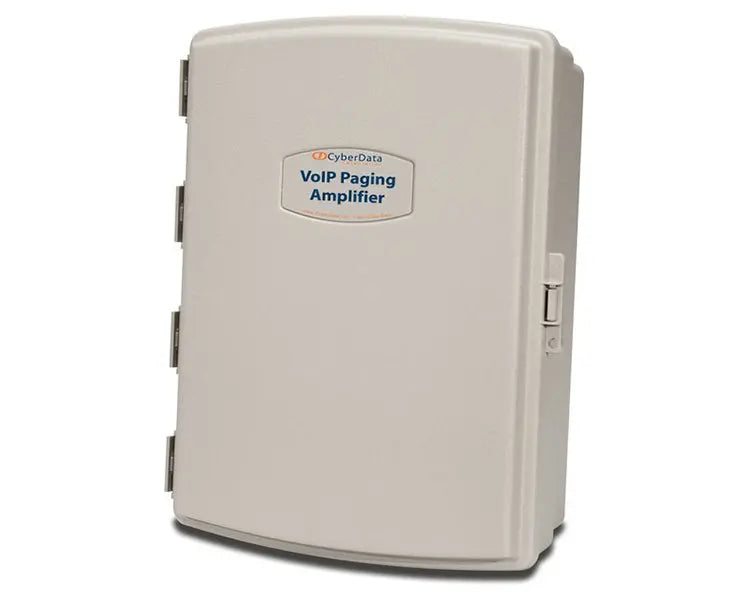

CyberData SIP Loudspeaker Amplifier - PoE (011405)
CyberData SIP Loudspeaker Amplifier - PoE (011405)
The CyberData SIP-enabled Loudspeaker Amplifier PoE (011405) provides an easy method for implementing a loud IP-based overhead paging system for loud areas, warehouses, manufacturing areas, and outdoor areas.
CyberData 011405 Features
- SIP Enhanced interoperability for hosted environments
CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData - NEW SECURITY FEATURES:
Support for security code access for SIP paging
Autoprovisioning via HTTPS
HTTPS web based configuration - Support for G.722 codecs
- 802.11q VLAN tagging
- Configurable sense input for use with fault detection
- Configurable event generation for device health and status monitoring
- Optional direct connect RGB strobe kit connection (coming soon)
- 9 user-uploadable page messages Packaged in a NEMA 3R/IP42-rated enclosure
With up to 9 user-stored messages, the Amplifier provides direct drive of up two 8 Ohm horns. The interface is compatible with most SIP-based IP PBX servers that comply with the SIP RFC 3261. For non-SIP environments, the Loudspeaker Amplifier can be configured to listen to multicast address and port number combinations to form paging zones.
Features
- SIP and Simultaneous Multicast
- Dual-speed ethernet 10/100 Mbps
- Web-based configuration
- PoE 802.3at and 802.3af-enabled
- Line-in for background music
- Line-out connector
- DTMF controlled relay
- Direct 8 Ohm speaker drive
- User-uploadable tones and messages
- Digital and manual volume control
- Second SIP endpoint "Night Ringer"
- Autoprovisioning
- Auto-call voice message from input port sense
- Can support two horns
- HTTP Command Interface
- 10 channel prioritized Multicast ports
- Built-in diagnostics
- Delayed page support
- Cisco SRST
General
- Ethernet I/F 10/100 Mbps
- Protocol SIP RFC 3261 Compatible
- Power Input PoE 802.3at or 802.3af
- Audio Output
802.3af - SPL 114 dB @ 1 meter (When used with the 011068 Mini Horn.)
802.3at - SPL 117 dB @ 1 meter (When used with the 011068 Mini Horn.) - Line In:
Input Signal Amplitudes 2.0 VPP maximum
Input Impedance 10k Ohm - Line Out:
Output Signal Amplitudes 2.0 VPP maximum
Output Level +2dBm nominal
Total Harmonic Distortion 0.5% maximum
Output Impedance 10k ohm - Operating Temperature -10 degrees C to 50 degrees C(14 degrees F to 122 degrees F)
- Payload Types G.711 μ-law, G.711 a-law, and G.722 + Singlewire HD
- Dimensions
10 in. [254 mm] Length
4 in. [101.6 mm] Width
14 in. [355.6 mm] Height - Boxed Weight 6.5 lbs. [2.95 kg]
- Warranty 2 Years Limited
- Part Number 011405
- Loudspeaker Part Number 011068
