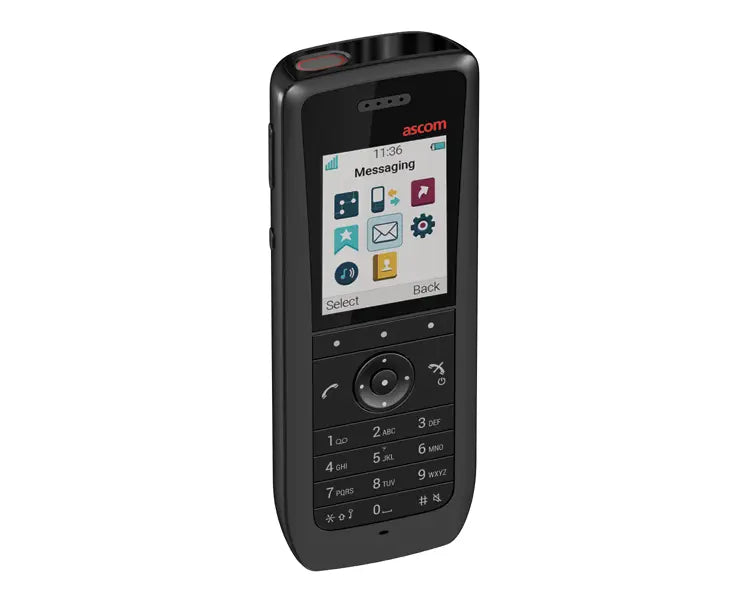

Ascom i63 Protector VoWiFi Handset (WH2-ACAA)
Ascom i63 Protector VoWiFi Handset (WH2-ACAA)
The Ascom WH2-ACAA is a stylish yet robust enterprise-grade handset with reliable VoWiFi performance to deliver smoother workflows and easy management.
Ascom WH2-ACAA Key Features
- 2.0" TFT colour display
- Bluetooth enabled
- Reliable VoWiFi performance and seamless roaming
- Easy to use
- Smooth device management
- Protects users and colleagues
- Mobility with confidence
True VoWiFi performance in three models
The Ascom i63 combines the reliability, ease-of-management and performance of VoWiFi with enterprisegrade ruggedness, ergonomics and stylish design. Available in three models (Talker, Messenger, Protector), the Ascom i63 VoWiFi delivers exceptional network and roaming performance.
Bluetooth and locating
All models are Bluetooth enabled, allowing wireless headsets to be used for handsfree operation. The Protector model is compatible with IR and LF. Messenger and Protector models also support Bluetooth Low Energy location systems, WLAN access points, Cisco MSE and AiRISTA Flow RTLS location systems.
Built to work. And work. And work.
A 920mAh battery provides up to 100 hours of stand-by and ten hours of speech time. The sturdy body is dust and water resistant to IP44 standard, and can be safely cleaned with common disinfectants
Easy to use. Easy to manage. Easy to secure.
Rugged durability, centralised management and OTA updates mean a low Total Cost of Ownership and easy administration. Various authentication and encryption methods provide robust enterprise-grade security.
Physical
- Dimensions (l × w × h): 137 × 52 × 21mm
- Weight: 135g (excl. clip) (4.8 oz)
Display
- 31 × 41mm (2.0 in), TFT colour display
- 240 × 320 pixel LCD with white LED backlight
Battery and charging
- Type: Li-polymer 3.7V 920mAh
- Speech time: 10h
- Stand-by time: 100h
- Charge time: <4h
Connectors
- Multi-purpose connector: With USB for fast software download, configuration, and battery charging
- Headset connector: Standard 3.5mm
Languages
- Menu and message languages (20): Arabic, Chinese (simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese (Brazilian), Russian, Slovak, Spanish, Swedish, and Turkish
Phonebook
- Central phone book: Unlimited entries
- Company phone book: 1000 entries
- Local phone book: 250 entries
Telephony Indication
- Illuminated display
- Vibrator
- 14 ring signals
- Aggressive ring signal
- 5 beep signals
- 3 user defined custom sounds
Call list storage capacity
- 25 calls (received, dialled and missed) with time stamp
Voice codecs
- Opus Wideband, G.711 A-law (EU), G.711 u-law (US), G.722, G.729, G.729A, G.729B, and G.729AB
Location and alarm
- Location types (Messenger and Protector):
- IR, LF (Protector)
- BLE
- Associated WLAN access point (AP)
- Cisco MSE
- AiRISTA Flow RTLS - Alarm types (Protector): Supported version:
- Push button alarm
- Man-down and no-movement alarms
- Acoustic Location Signal (ALS)
- Automatic emergency call after alarm
Bluetooth
- Supported version: 5.0
- Supported profiles: Headset and handsfree
WLAN
- Quality of Service (QoS): WMM, TSPEC-based CAC
- Supported networks: 802.11 a/b/g/n/ac (MCS0-7)
Security
- Security standard: 802.11i, 802.11w
- Encryption methods: AES-CCMP, TKIP
- Authentication methods:
- Open
- WPA/WPA2-PSK
- PEAP-MSCHAPv2
- EAP-TLS
Roaming enhancement
- 802.11r, 802.11k
- Opportunistic Key Caching
- PMKSA caching
Licenses
- WH2-L01: Upgrade license Ascom i63 Talker to Messenger
- WH2-L02: Upgrade license Ascom i63 Talker to Protector (Only alarm button functionality)
- WH2-L03: Upgrade license Ascom i63 Messenger to Protector (Only alarm button functionality)
