Algo 1128I - Algo Clear LED Strobe Light

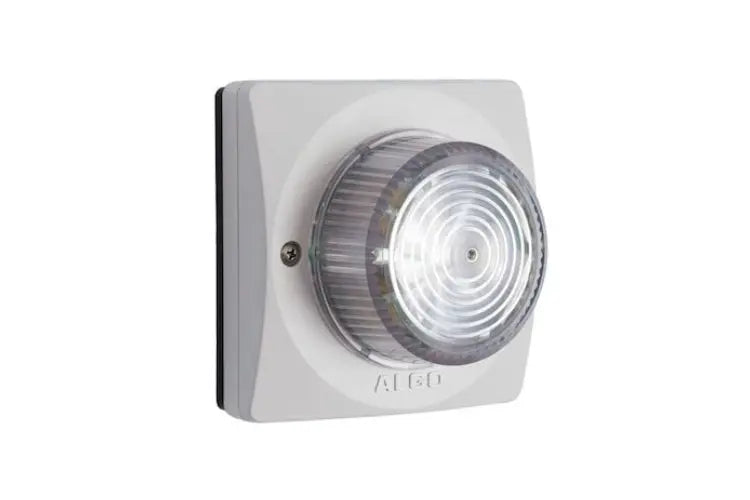

Algo 1128 Analog Strobe Light
The Algo 1128 24V Aanlong Straobe Light serves as a clear/white visual alert for telephone ringing, specifically addressing noise sensitivity or hearing impairment concerns. Additionally, it is widely utilized for safety, security, and emergency event notifications.
Algo-1128 Analog Strobe Light Key Features:
- Strobe Alert Notification System utilizing analog technology.
- Long-life LEDs with 360 x 180 degree visibility from wall/ceiling mount.
- 34+ years of continuous use with zero light degradation.
- Rated at 643 lumens with a maximum luminous intensity of 198 candela
The 1128 can be activated through an analog station / FXS port or ATA. It can also be triggered by dry contact closure input or auxiliary input detection of 3-30V AC or DC. Moreover, it supports audio detection from the Algo 1825PM Duet Plus analog loud ringer.
Power
- Power input: 12VDC 750 mA or 24VDC 375 mA
- Power supply shipped: AC Mains Adapter 120V/230V
Optical
- 8 LEDs (White)
- 16 Selectable flash patterns using 4 position switch
- 198 Cd
- 643 Lumens
Input/Output
- Relay Input: Max 1 kOhm
- Ring Input: 20/25 Hz 20Vrms minimum
- Auxiliary Input: 3-30V DC or AC (rms)
Environmental & Mechanical
- Environmental: -20 to +50° C (-4 to +122° F); 10-95% RH, non-condensing. Dry indoor location only unless wiring cavity protected from water ingress using supplied gaskets or other protective measures.
- Dimensions (Product): 4.8″ x 4.8″ x 3″ (12.2cm x 12.2cm x 7.6cm)
- Weight (Product): 1.0 lbs (0.5 kg) / Weight (Shipping): 1.7 lbs (0.8 kg)
Compliance
- RoHS, CE, FCC, CSA/UL (USA & Canada), EN60950
