2N Uni - 1 Button with pictograms (9153101P)

Available:In Stock
£446.28
Please Note: All 2N products come with a 3 year warranty as standard however, this can be extended up to 5 years. Customers have the option to extend their warranty by either one or two years. To find out more, please click here or call our sales team on
Please Note: The 2N Intercoms may require additional licenses to activate all features.

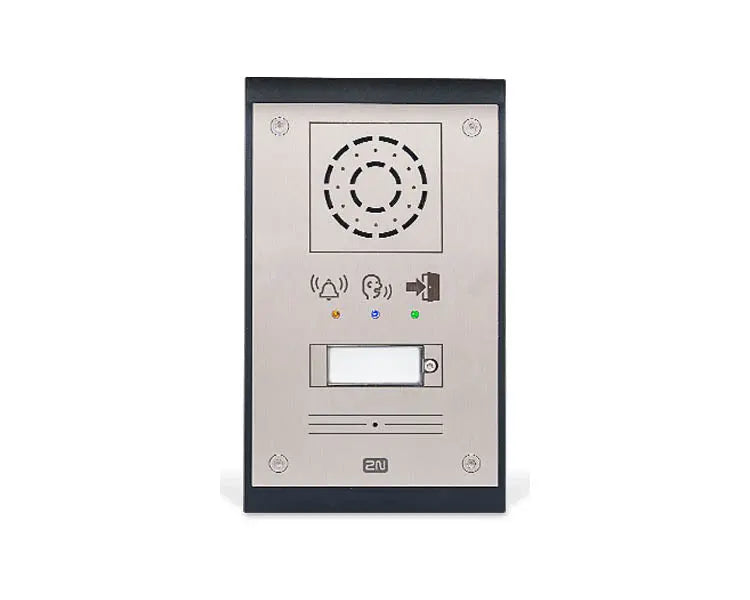

 2N Uni - 1 Button with pictograms  (9153101P)

The  2N Uni - 1 Button with pictograms  (9153101P) is a SIP Intercom which provides a cost effective solution for access control and communication. It offers full-duplex audio with echo cancellation, integrated relay for door entry systems.

2N Helios IP Uni 1 button 9153101 is ideal for schools, parking lots, shopping malls, hospitals or public buildings. It can be used as an information/emergency help point or as a door entry system.

2N IP Uni 1 button Features:

  • Easy installation
  • 1W Speaker
  • 1 back-lit buttons
  • Tamper switch



Due to its innovative design and available accessories, 2N Helios IP Uni 1 button 9153101 will save you time needed for installation and offers you variety of mounting options such as on the wall, plasterboard orflush mount.

Benefits:

  • Cost effective door IP Intercom solution
  • Relay controlled by DTMF
  • Stainless steel front panel
  • Compatible with 2N Helios IP Manager

Target Groups:

  • Schools
  • Hospitals
  • Residential
  • Public areas
2N IP Uni 1 button Technical Specifications

Signalling protocol

  • SIP 2.0 (RFC - 3261)

Buttons

  • Button version fully back-lit
  • Number of buttons 1

Audio

  • Microphone 1 integrated microphone
  • Speaker 1W

Audio stream

  • Codecs G.711, G.729

Interface

  • Power 12V±15%/1A DC or PoE
  • PoE PoE 802.3af (Class 0 - 12.95W)
  • LAN 10/100BASE-TX with Auto-MDIX
  • Passive switch NC/NO contacts, max 30V/1A AC/DC
  • Active output of switch 12V/700mA DC

Mechanical properties

  • Operating temperature -40°C – 55°C
  • Storage temperature -40°C – 70°C
  • Storage relative humidity 10% - 95% (non-condensing)
  • Dimensions 193x115x57 mm (max)
  • Protection level IP54
